Gear installation

[Jtouch81]

So I am currently trying my hand at swapping my 3.55 gears out to 4.10 gears. I’m currently putting everything back together and trying to get the gear pattern and pinion gear correct.

My current pattern is the drive side is on the heel and my coast side is on the toe. I’ve taken out shims and added shims with no luck. I’ve used the old factory shim as well as added all the shims that came in the install kit and am still on the heel and toe. Not sure if I should purchase extra shims or am I doing something wrong?


Sent from my iPhone using Tapatalk



[Bruno rubio]

Bump ^^^



[pacofortacos]

https://www.racingjunk.com/news/2015/03/24/how-to-set-up-your-rear-gear-correctly/

Does this help?



[stevenP]

Wow, I used wrench on a lot of things. Taking apart transmissions and rear diff was my limit. If you set up a rear end wrong, it will self destruct. I paid some guy who did it for a living to set up mine when I switched years ago on my race car. Cost me like $100, for his labor and he had all the shims etc. for the job already.



[Gr8bawana]

Setting up gears is something I leave to the pros that have the proper tools and know-how.



[Fast69Mopar]

So I am currently trying my hand at swapping my 3.55 gears out to 4.10 gears. I’m currently putting everything back together and trying to get the gear pattern and pinion gear correct.

My current pattern is the drive side is on the heel and my coast side is on the toe. I’ve taken out shims and added shims with no luck. I’ve used the old factory shim as well as added all the shims that came in the install kit and am still on the heel and toe. Not sure if I should purchase extra shims or am I doing something wrong?


Sent from my iPhone using Tapatalk

Do you have any pics of your gear pattern? If you can post some pics I can help guide you.



[Pull Ya]

You have bit'n off a lot to chew--IMHO
Jay



[Jtouch81]

Sent from my iPhone using Tapatalk



[Jtouch81]

So I do have all the tools to do the installation as well as a press, dial indicator, everything that is needed except a pinion depth indicator which that’s not something you have to have.

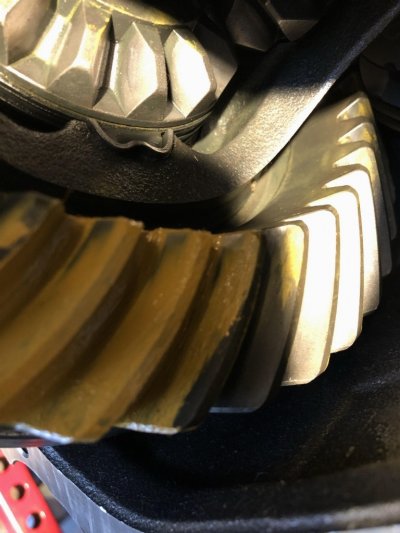

Above you can see my drive side is on the heel and the coast is on the toe. That is with backlash set at 7 and I currently am using setup bearings as well as the old crush sleeve and old pinion nut. Currently that is with the factory shim.


Sent from my iPhone using Tapatalk



[superjoe83]

Try to go deeper with the pinion, that will move the drive side toward the toe and the coast will move towards the heel



[Jtouch81]

I did have a .018 shim in with the original factory shim and it seemed to move it toward the heel a little more.. thank you for the quick reply!


Sent from my iPhone using Tapatalk



[superjoe83]

Also, when checking the pattern, put a load on the pinion flange, and rotate the ring gear with a wrench on a ring gear bolt to get some leverage. When I used to set up my toyota third members I found I got a clearer pattern in the grease with it loaded some, I just used a rag to grab the pinion flange while I rotated the ring gear.



[Jtouch81]

Yeah it was very tough to get a clear pattern.. I read if you add a little bit of gear oil to the paint it will help as well but I haven't tried that yet. Going to add 2 - .050 shims tonight to see if it moves it any.



[Jtouch81]

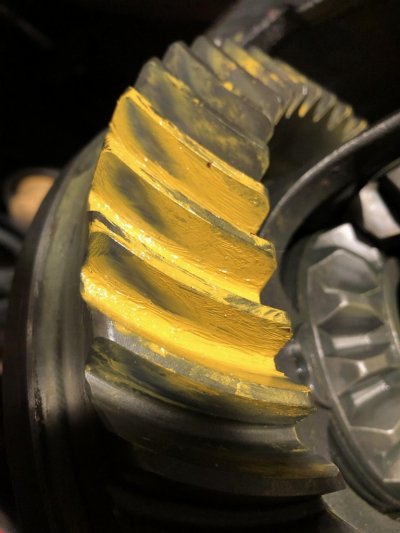

This is with .050 shim added



Sent from my iPhone using Tapatalk



[Jtouch81]

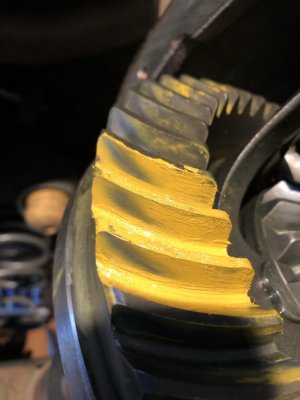

This is with .050 and .054 added... looks worse with extra shims



Sent from my iPhone using Tapatalk



[Jtouch81]

Sent from my iPhone using Tapatalk



[rvance]

Wow, I used wrench on a lot of things. Taking apart transmissions and rear diff was my limit. If you set up a rear end wrong, it will self destruct. I paid some guy who did it for a living to set up mine when I switched years ago on my race car. Cost me like $100, for his labor and he had all the shims etc. for the job already.

I have rebuilt a couple of auto trans in my Roadrunner, but the gears are something I paid a professional to do. Almost impossible for a home mechanic to get them right.
Note that I rebuilt every other part of a car at one time or another, from complete engines to AC systems. But NOT gears.



[DarthMegaHD]

Following because I want to find out what oil and how many quarts you end up using



[Jtouch81]

Following because I want to find out what oil and how many quarts you end up using

Purchased 6 of those since I’ll be draining it out after the first 500 miles.. I’ll keep you updated once I get to that point



Sent from my iPhone using Tapatalk



[DarthMegaHD]

So what's the science behind going with the 75w140 over the recommended 75w90?
