How to: Add Dual Zone ATC to a Tradesman

Discussion in '4th Gen DIY' started by STecoD, May 3, 2019.

Page 7 of 8
  1. Nov 7, 2019 at 9:15 PM #61
    Remen

    Remen Member

    Posts:
    49
    Likes Received:
    24
    Joined:
    Feb 13, 2019
    Location:
    CA
    Ram Year:
    2017
    Engine:
    3.0L Diesel
    Monday ordered the HVAC module and it arrived today. It took all of 15 minutes to R/R the module and test the system.
    These are the results:
    Dual mode working normally. Ran control functions and temperature settings and now system cools and heats as expected. Success!

    The original HVAC module was part of the 8.4 UAQ upgrade kit and dual zone option. The first modification to the system was configured as a single zone ATC system all worked well. When I changed the hardware and settings to a dual zone system my adventure began. Electrical components can fail without any indication as evidenced by the “new” module failure.

  2. Nov 7, 2019 at 9:37 PM #62
    Remen

    Remen Member

    Posts:
    49
    Likes Received:
    24
    Joined:
    Feb 13, 2019
    Location:
    CA
    Ram Year:
    2017
    Engine:
    3.0L Diesel
    The process involving the modification works and relatively inexpensive. My case was unusual and work intensive due to the HVAC module failure. Thanks again to STecoD, Ricks Ram, and jimmy07 for their support in this venture.

    STecoD, Ricks Ram and Mpgrimm2 like this.
  3. Nov 7, 2019 at 11:09 PM #63
    Ricks Ram

    Ricks Ram Senior Member

    Posts:
    4,222
    Likes Received:
    3,109
    Joined:
    May 1, 2015
    Ram Year:
    2014
    Engine:
    Hemi 5.7
    Glad hear you got it figured out. That was definitely a tricky one! My blend door motor being incorrect when I did mine was also a little tricky but it works great now. I use the Dual Zone a lot. I really like this mod. It really isn't as hard to do as some might think and is relatively inexpensive to do.

    Sent from my SM-G960U using Tapatalk

    STecoD likes this.
  4. Nov 25, 2019 at 1:18 PM #64
    Mega_Newblar

    Mega_Newblar Junior Member

    Age:
    30
    Posts:
    2
    Likes Received:
    1
    Joined:
    Sep 28, 2019
    Location:
    United States
    Ram Year:
    2015
    Engine:
    5.7L v8 Hemi
    Any reason I couldn't do this mod on my 2015 Ram 1500 Quad Cab? I already have the single zone ATC mod installed and working. Would the wiring be the same?

  5. Nov 25, 2019 at 4:12 PM #65
    Ricks Ram

    Ricks Ram Senior Member

    Posts:
    4,222
    Likes Received:
    3,109
    Joined:
    May 1, 2015
    Ram Year:
    2014
    Engine:
    Hemi 5.7
    You can definitely do it to your 15 Quad Cab. I installed the Dual Zone on my 14 Quad Cab and it works great. The wiring for the HVAC is the same on the Quad Cab and the Crew Cab trucks. To order the correct HVAC box find a 13 to 18 Laramie Quad Cab on Ebay that's for sale and get the Vin#. All Laramie trucks are Dual Zone. Make sure it has the same Cab configuration and engine as what you you have. If you have a gas engine make sure the truck you get the Vin# from does as well. If you have a jump seat and no console make sure the truck you get the Vin# off of is the same. If you have a center console make sure you get the Vin# off of a truck that also is a Quad Cab with the center console. Contact Benny @AllMoparParts.com in the vendor section and give him two vin#s off two Laramie trucks with the same configuration as your truck and he will verify your part# and you can order it through them. My truck is a Quad Cab 5.7 Hemi with the Jump Seat the correct part# for the Dual Zone HVAC box for my truck was 68048891AD. You will also need to buy one extra blend door motor. The blend door motor part# my 14 took was 68448926AA.

    Sent from my SM-G960U using Tapatalk

    Mpgrimm2 likes this.
  6. Nov 25, 2019 at 4:27 PM #66
    Mega_Newblar

    Mega_Newblar Junior Member

    Age:
    30
    Posts:
    2
    Likes Received:
    1
    Joined:
    Sep 28, 2019
    Location:
    United States
    Ram Year:
    2015
    Engine:
    5.7L v8 Hemi
    Thanks for the confirmation.. Doing my research now, making a list and checking it twice. Only part that seems intimidating is the wiring but I'm sure I can figure it out.

    I'll be sure to take some pics when I'm ready to take the plunge.

    Mpgrimm2 likes this.
  7. Feb 21, 2020 at 12:37 AM #67
    Mpgrimm2

    Mpgrimm2 Senior Member Preferred Vendor Supporting Member Military

    Posts:
    5,084
    Likes Received:
    3,244
    Joined:
    Mar 30, 2014
    Location:
    Anderson, SC
    Ram Year:
    2019 Laramie QC (5th Gen)
    Engine:
    5.7L eTorque

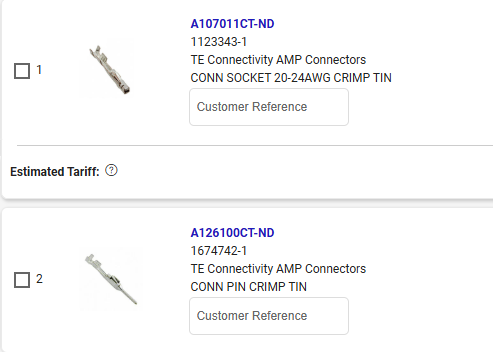

    For anyone considering this with an 8.4 conversion ... I have the parts/method to build the extra pass. blend door wiring into the conversion harness to avoid splices/soldering repinning connectors. Can't really retrofit it on my end into anything that's already gone out.

    48PowerWagon, Ricks Ram and STecoD like this.
  8. Apr 16, 2020 at 9:16 PM #68
    Mpgrimm2

    Mpgrimm2 Senior Member Preferred Vendor Supporting Member Military

    Posts:
    5,084
    Likes Received:
    3,244
    Joined:
    Mar 30, 2014
    Location:
    Anderson, SC
    Ram Year:
    2019 Laramie QC (5th Gen)
    Engine:
    5.7L eTorque

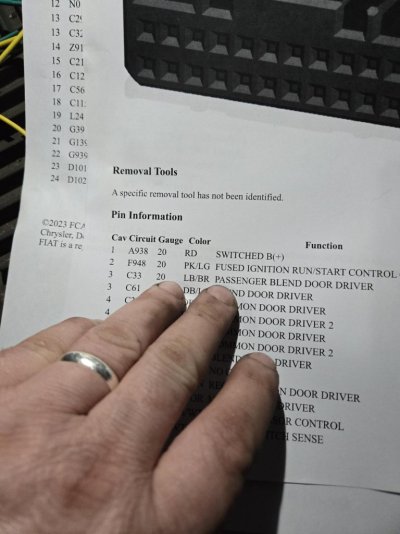

    Here's what the 7 speed conversion harness looks like with the ATC part 1 cabin Temp sensor wiring and the new option connector so I can support part 2 humidity sensor harness (or 2500 fan harness) with the dual Zone pass. blend door wiring/connector.

    Other than doing the dash pull/plenum box hardware swap... The wiring is now a plug n play option.

    Hoping @Ant_si_08 shares some install pictures when he gets around to it.

    [​IMG]

    M² Mods.

    WarEagleEE, Ricks Ram, mjf6175 and 1 other person like this.
  9. Apr 19, 2020 at 1:42 AM #69
    Ricks Ram

    Ricks Ram Senior Member

    Posts:
    4,222
    Likes Received:
    3,109
    Joined:
    May 1, 2015
    Ram Year:
    2014
    Engine:
    Hemi 5.7
    Looks nice Mike. Hopefully a few more guys will give it a try. It's really not that hard to do, especially now that you offer a harness.

    Sent from my SM-G960U using Tapatalk

    Cesar592 and Mpgrimm2 like this.
  10. Oct 29, 2020 at 10:16 PM #70
    RAMMIN_TIME

    RAMMIN_TIME Junior Member

    Age:
    40
    Posts:
    19
    Likes Received:
    4
    Joined:
    Aug 14, 2017
    Ram Year:
    2014
    Engine:
    6.7
    Curious on the Alfa calibration, do you need a special cable or will OBD MX+ work? I notice in Alfa OBD it said something about MS – CAN blue.


    Sent from my iPad using Tapatalk
