How To: Install a 2018 4C (UAQ/UAS) Radio in 2013 - 2017 RAM

[SitKneelBend]

Any ideas on the "device not supported" message I'm getting everytime the radio powers up?


I updated from a factory 5.0 to a UAQ. Bought it new from Benny. Also did the 4 to 7 spd blower conversion as well as the single zone auto temp conversion. I added the sun sensor for atc harness and the 4 pin sun sensor. Everything went well except two issues.

I get a "device not supported" window everytime the radio powers up. It doesn't go away until you click ok. First I thought it was because I haven't installed the updated usb hub. So I did that tonight and no change. I still get the message. No phones paired. Nothing connected to the usb ports or aux. No fault codes in the radio either. Kinda disappointing after the money spent to get an in your face issue everytime the radio powers up. And you can't find out what device it's referring to either.

The other issue I have is a fault code in the HVAC. I don't recall the code but it's for the right side blend motor. It's setup for single zone ATC, so it shouldn't look for a passenger side blend motor. Fault only goes away if I revert back to single zone manual. Is this an expected fault that everyone gets? Would it effect the system operation? Any way to eliminate the fault?

View attachment 244644
View attachment 244645
View attachment 244646 View attachment 244647 View attachment 244648

Specs
2018 Ram 3500 tradesman. Diesel. Factory back up camera. Factory 5.0 and sat radio. Factory rear parksense.

Harnesses I bought from mp grimm. Everything else Chrysler, Benny.

Thanks,
Earl

Try this...

https://www.ramforum.com/index.php?posts/2495436


Sent from my HTC U11 using Tapatalk



[CoZo6]

What exact panasonic radio PN/model are you using?

And do you know what application version the radio is running?


M² Mods.
(via Tapatalk App)

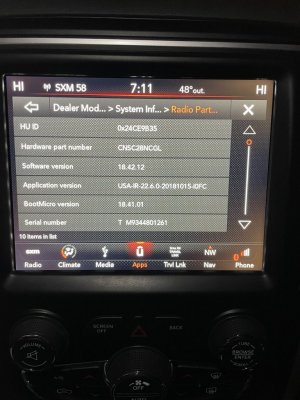

Ezduzit23 has my UAQ, it is Part 68331631AJ and here is a screen shot of what it had when I sent it to him. I don’t know if he has done any other upgrades. I did the 22.6 along time ago:



[Earl Zeis]

Try this...

https://www.ramforum.com/index.php?posts/2495436


Sent from my HTC U11 using Tapatalk

Tried that. Still get the message and still have to clock ok to get it to clear. But mine does it with nothing connected.

Thanks
Earl



[Avh5153]

Ok guys, I have a weird issue here.

2013 Ram 2500 Laramie G56

It came factory with 8.4 Uconnect with Navigation and dual zone. I recently upgraded to a UAQ radio thanks to Deereguy hooking me with up with one.

When I initially fired the truck up the climate works no issues at all. After it sits for a while and the backup cam and SXM enable is where my HVAC starts giving me issues. It only displays on Hi or Low. No temp in between. If I pull a battery cable it will start working again until it sits a little while. I recently discovered that changing my units to metric makes it work just fine. But then I’m in KM and what not. I did the temp module to 2018 version upgrade and that changed nothing. Any thoughts? @ManualCummins suggested a software update to 22.6 which I will be doing next. I’m on 19.9 right now.



[chri5k]

Ok guys, I have a weird issue here.

2013 Ram 2500 Laramie G56

It came factory with 8.4 Uconnect with Navigation and dual zone. I recently upgraded to a UAQ radio thanks to Deereguy hooking me with up with one.

When I initially fired the truck up the climate works no issues at all. After it sits for a while and the backup cam and SXM enable is where my HVAC starts giving me issues. It only displays on Hi or Low. No temp in between. If I pull a battery cable it will start working again until it sits a little while. I recently discovered that changing my units to metric makes it work just fine. But then I’m in KM and what not. I did the temp module to 2018 version upgrade and that changed nothing. Any thoughts? @ManualCummins suggested a software update to 22.6 which I will be doing next. I’m on 19.9 right now.

Where did you get the upgrade kit? Whose harness do you have? There some harnesses / kits that seem to have more problems than others.



[Avh5153]

Where did you get the upgrade kit? Whose harness do you have? There some harnesses / kits that seem to have more problems than others.

My truck came with dual zone and 8.4 from the factory. I’m just upgrading to 4C. The only harness that I added was the infotainment harness to enable my heated and cooled seats in the menu on the radio.



[Mpgrimm2]

Did you install a new or used 2018 HVAC module with your 13ram2500 g56? (xxxxx553Ax)

I doubt an sw upgrade of the radio to v22.6 would help and don't recommend it as v19.9 is the better version imo.

----------------
If you have AlfaOBD, try this with you factory dual zone atc setup....


RESET YOUR HVAC Configuration:

Connect with AlfaOBD and set your truck (Ecu Config 3) HVAC Configuration to: Single Zone MTC

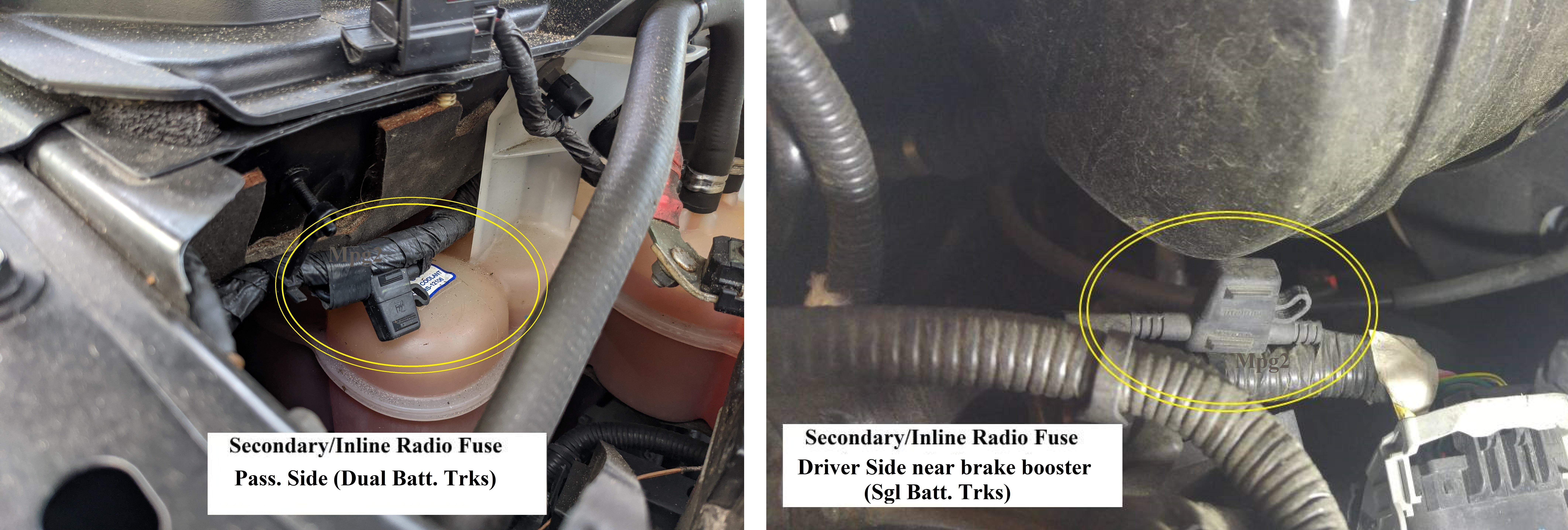

Then disconnect AlfaOBD, Shudown the truck, let it go to sleep… and pull the 20A inline Radio fuse near the brake booster at the firewall (2 minutes) to force a radio reset.


Next… Get back in and switch the truck to “run” without starting. Wait for UAQ to reset… it’s done when the SXM button appears and the Backup Camera works again. *** You must wait for the reset to finish before proceeding **

Check the HVAC on screen menu… it should show the Single Zone temp slider without the temp readout .


Next...

Set Dual Zone ATC:

Connect back up with AlfaOBD, HVAC Configuration back to: DUAL ZONE ATC

Then disconnect AlfaOBD, Shudown the truck, let it go to sleep… and pull the 20A inline Radio fuse near the brake booster at the firewall (2 minutes) to force a radio reset. (yes again)


Next… Get back in and switch the truck to “run” without starting. Wait for UAQ to reset… it’s done when the SXM button appears and the Backup Camera works again.

Check the HVAC on screen menu… it should show both Dual Zone ATC Temp sliders with the temp readouts.

You should now be back to your original factory dual zone ATC setup.



[Avh5153]

Did you install a new or used 2018 HVAC module with your 13ram2500 g56? (xxxxx553Ax)

I doubt an sw upgrade of the radio to v22.6 would help and don't recommend it as v19.9 is the better version imo.

----------------
If you have AlfaOBD, try this with you factory dual zone atc setup....


RESET YOUR HVAC Configuration:

Connect with AlfaOBD and set your truck (Ecu Config 3) HVAC Configuration to: Single Zone MTC

Then disconnect AlfaOBD, Shudown the truck, let it go to sleep… and pull the 20A inline Radio fuse near the brake booster at the firewall (2 minutes) to force a radio reset.


Next… Get back in and switch the truck to “run” without starting. Wait for UAQ to reset… it’s done when the SXM button appears and the Backup Camera works again. *** You must wait for the reset to finish before proceeding **

Check the HVAC on screen menu… it should show the Single Zone temp slider without the temp readout .


Next...

Set Dual Zone ATC:

Connect back up with AlfaOBD, HVAC Configuration back to: DUAL ZONE ATC

Then disconnect AlfaOBD, Shudown the truck, let it go to sleep… and pull the 20A inline Radio fuse near the brake booster at the firewall (2 minutes) to force a radio reset. (yes again)


Next… Get back in and switch the truck to “run” without starting. Wait for UAQ to reset… it’s done when the SXM button appears and the Backup Camera works again.

Check the HVAC on screen menu… it should show both Dual Zone ATC Temp sliders with the temp readouts.

You should now be back to your original factory dual zone ATC setup.

Thanks a lot! I’ll try this tomorrow and report back.



[chrisbh17]

@Roman217 @Mpgrimm2

Note @Avh5153 is using the infotainment seat control module.......

Sent from my Pixel 3 XL using Tapatalk



[Mpgrimm2]

Thanks a lot! I’ll try this tomorrow and report back.

And disconnect that 4c Infotainment Seat Interface harness/Module completely until done with the HVAC config changes and you know for sure if it's affecting the function of the temp blend door or not... ie a full day or two after your done.

Also: are you running a new or used 2018 Ram 2500 hvac module (xxxxx553Ax )??


M² Mods.
(via Tapatalk App)



[Avh5153]

And disconnect that 4c Infotainment Seat Interface harness/Module completely until done with the HVAC config changes and you know for sure if it's affecting the function of the temp blend door or not... ie a full day or two after your done.

Also: are you running a new or used 2018 Ram 2500 hvac module (xxxxx553Ax )??


M² Mods.
(via Tapatalk App)

I’ll do that as well. I’m doing the change right now so if it doesn’t work I’ll unhook the infotainment harness and repeat. I’m running a new unit 68366553AA.



[Avh5153]

There was no change after doing the HVAC reset. I tried it with and without infotainment harness connected. One thing I did notice was the actuator behind the glove box changed when I changed temp when it was on MTC. One other thing I thought was strange I noted in my original comment is it works like normal in dual ATC when I change the units to Metric.

Any other thoughts?



[Roman217]

There was no change after doing the HVAC reset. I tried it with and without infotainment harness connected. One thing I did notice was the actuator behind the glove box changed when I changed temp when it was on MTC. One other thing I thought was strange I noted in my original comment is it works like normal in dual ATC when I change the units to Metric.

Any other thoughts?

Can you post your BCM settings? I know my HVAC contros freaked out when I had the CSMs for other measures/units (power units, temp unita, torque units, etc) turned on. After I turned all those off and only set the US/metric CSM my controls returned to normal.

Sent from my SM-N986U using Tapatalk



[Avh5153]

Hardware Supplier Identification: Continental

Software Logical Block Supplier Identification: Continental

Active Diagnostic Status Of ECU: Running in Application mode

Gateway: Yes


Vehicle Configuration Programmed Status: Yes

Last Programmed Status: Manufacturing


ECU Qualification:

Sense-Ambient Light Dimmer Wheel: No

Sense-Reverse Switch: No

Sense-Door Lock Switch Front Driver: Yes

Sense-Door Lock Switch Front Passenger: Yes

Sense-ERS Switch: No

Sense-Flipper Glass Ajar: No

Sense-Fuel Level Sensor #2: No

Sense-Hood Ajar Switch: No

Sense-Hard Top/Stealth Input: No

Sense-Liftgate/Trunk Ajar: No

Sense-Trunk/Flipper Glass Release Switch: No

Sense-Rear Wiper Park Switch: No

Sense-Washer Fluid Level: Yes

Sense-Flipper Glass Release/Sunshade Switch: Yes

Sense-ESP Off Switch: Yes

Sense-Cargo Lamp Switch: Yes

Police Passenger Unlock Motor Present: No

Control-Headlamp Leveling: No

Control-Baggage Comp Lamps: Yes

Control-Diesel Cabin Heaters 1-3: No

Control-ESCL: No

Control-Diesel Fuel Heater Relay: No

Control-Flipper Glass #2: No

Control-Foot Well Lamps: Yes

Control-Front Fog Lamps: Yes

Control-Headlamp Washer Motor: No

Control-Passenger Airbag Off LED: No

Control-Rear Fog Lamps: Yes

Control-Rear Turn Lamps: No

Control-Rear Wiper Motor/Flipper Glass #1: No

Control-Run/ACC Relay #2: Yes

Control-Side Repeaters: No

Control-Sunshade: No

Control-Trunk/Flipper Glass Relay: No

Control-UGDO Feed: Yes

Control-Trailer Tow: Yes

Control-Dedicated DRL: No

Control-VTA Indicator Request: Yes

Control-Passenger Airbag LED: No

Adjustable Pedals Present (Non-memory): No

Inverter Present: Yes

Intrusion System Present: Yes

Remote Start Present: No

Tip Start Present: No

HID Headlamps Present: No

Auto Headlamps Present: Yes

Rain Sensor Present: No

Remote Compass Present: No

EC Mirror Present: Yes

Cruise Feature Present: Yes

RKE System Present: Yes

SKIM System Present: Yes

Police Vehicle: No

Military Lighting: No

AC Present: Yes

Rear Doors Present: Yes

Electronic Shifter Power Feed Present: Yes

____________________________

Car configuration

____________________________

VehConfig 1:

___________________

Model Year: 2013

Vehicle Line: DJ - RAM 2500

Country Code: USA

Left/Right Hand Drive: Left Hand Drive

Remote Start Present: No

Drive Configuration: Selectable 4wd

Emode Present: No

Auto Highbeam: No

Body Style: 4-Door Pickup

Maximum Vehicle Speed (0 - 500km/h): 510.000 km/h

Shifter Type: Not Applicable

PTS Display Type and Location: Headliner or NO Display Programmed

Performance Pages Present: No

Special Package: DT Base/Sport/SLT+/Laramie

Headrest Present: No

UREA/SCR System Present: Yes

Auto Park Configuration: Not defined

Rear View Camera: Yes

CHMSL Camera: No

Hill Descent Feature Present: No

Select Speed Control Feature Present: No

VehConfig 2:

___________________

Power Inverter Type: Latching Switch

Thatcham Present: No

Run Flat Tires Present: No

Maserati Vehicle Mode: Normal

Passenger Airbag Disable Switch Present: No

Rain Sensor Present: No

SKIM System Present: Yes

Air Conditioning Present: Yes

Cruise Control Present: Yes

Flipper Glass Present: No

Full Size Spare: No

Off-road Capable: No

Special Package: No Package

Dual Rear Wheel (DRW) Vehicle Present: No

Non-Regulated Tire Pressure Information System: No

Max Load Inflation Pressure Rear Tire (0-126PSI): 50.000 PSI

Max Load Inflation Pressure Front Tire (0-126PSI): 50.000 PSI

Light Load Inflation Pressure Rear Tire (0-126PSI): 45.000 PSI

Light Load Inflation Pressure Front Tire (0-126PSI): 60.000 PSI

VehConfig 3:

___________________

Police Lighting Feature: No

Power Lift Gate Present: No

Power Right Sliding Door Present: No

Power Left Sliding Door Present: No

RKE System Present: Yes

Sunshade Present: No

T-Case Type: Transfer Case BW 44-46

Wheel Base: Long wheel base (140'' & 149'' Ram Truck)

FOBIK Safe Enable: No

ELV Present: No

Fuel Capacity (36-290 L): 117.000 Liters

Window Express Feature Configuration: Front windows express only

Adjustable Pedal Feature Present (non-Memory): No

Auto Headlamp Feature Present: Yes

Door Alert Feature Present: No

Two Fuel Sending Units Present: No

Vehicle is an SRT: No

Disable Display of Radio Clock: No

Chassis Type: Type 13 /(SDB + BR2 + DJF + DSE)

Display Outside Temperature Present: Yes

HVAC Configuration: Dual Zone ATC + Rear

Vehicle Brand: Ram

Display Compass Heading Present: Yes

Interior Electrochromic Mirror Present: Yes

ESCL System Present: No

High Intensity Discharge Headlamps: No

Secondary Lock Present: No

Liftgate/Trunk Type: Trunk

Collision Mitigation System Present: No

Forward Collision Warning Present: No

Base TPM System Present: No

Premium TPM System Present: Yes

Paddle Shift Feature Present: No

Sport Mode Present: No

Auto Park Present: No

Passive Entry Present: No

Keyless Go Present: No

VehConfig 4:

___________________

Transfer Case High Ratio (0-16.382): 1.000

Axle Ratio (0-65.534): 3.420

Transfer Case Low Range Reduction Ratio (0-65.534): 2.640

Dynamic Tire Circumference (All or Rear) (0-65534 mm): 2730.000 mm

VehConfig 5:

___________________

Luci Feature Present: No

Equipped with Variable Geometric Turbo: No

Wait to Start Feature is Present: No

Ambient Temperature Sensor Location: DCM

Steering Ratio at Zero (0-25.4): 0.000

Steering Ratio at Positive Angle 1 (0-25.4): 0.000

Steering Ratio at Positive Angle 2 (0-25.4): 0.000

Steering Ratio at Positive Angle 3 (0-25.4): 0.000

Steering Ratio at Positive Angle 4 (0-25.4): 0.000

Steering Ratio at Positive Angle 5 (0-25.4): 0.000

Rear Door Lock Switch Present: No

Speed Limiter Present: No

Seat Belt Reminder Module Present: No

Child Display Present: No

Off-Road Pages Present: No

Ambient Lighting Present: No

Semi Automatic Parking System Present: No

Park With Stop Present: No

VehConfig 6:

___________________

Analog Door Sensor Configuration: None

Brake Type Configuration (M156/7): Signal Not available

Air Quality System Present: No

Steering Ratio at Negative Angle 1 (0-25.4): 0.000

Steering Ratio at Negative Angle 2 (0-25.4): 0.000

Steering Ratio at Negative Angle 3 (0-25.4): 0.000

Steering Ratio at Negative Angle 4 (0-25.4): 0.000

Steering Ratio at Negative Angle 5 (0-25.4): 0.000

Dynamic Tire Circumference, Front Only (0-65534 mm): 65535.000 mm

ECUConfig 3:

___________________

Configuration Messages Status 3: Programmed

Rear Camera Present: Yes

DRL Customer Setting Option Present: No

Power Inverter Present: No

Front Park Assist Present: No

Front Heated Seats Present: Yes

Front Ventilated Seats Present: Yes

Country of Destination: MARKET 2 // United States of America

Cabin Equalization Curve: Crew Cab Premium (Alpine 12-ch) (DS)

CTP Passive Entry Present: No

SDAR Travel Link Feature Present: Yes

DAB/DMB Present: No

Vehicle Theft Alarm (VTA) System Present: Yes

Heated Steering Wheel Present: Yes

Overdrive Switch Feature Present: No

Surround Sound Feature Present: Yes

Power Door Locks Present: Yes

Antenna Type: Passive Primary and no secondary antenna

Hybrid Electric Powertrain Present: No

Disable CD Eject: No

Tow Haul Switch Feature Present: No

Hill Descent Switch Feature Present: No

PASS Call Feature Present: No

PASS Hands-Free Phone Feature Present: No

External Port Type: Absent

PASS WiFi Antenna Present: No

ECUConfig 4:

___________________

ERS Available: No

Rear Wheel Dually: No

Max Gear: Not Set

Virtual Speedometer Units: Not Set

Speedometer Range Max Scale: Not Set

IPC Configuration Feature Present: No

PTO Present: No

Ambient Dimmer: No

Heated Seat Present: Yes

Split Shaft Present: No

Manual Headlamp Leveling: No

Gear Shift Indicator: No


CBC Features:

___________________

Tip Start Enabled: No

Dual Start Relay System Present: No

Wiper Service Position Enabled: No

Fuel Door Release Enabled: No

Trailer Tow Present: Yes

Quad Headlamps Enable: Yes

Horn Chirp Allowed: Yes

Bi Xenon Headlamps Enabled: Yes

Hazard Lamp Configuration: Latching

Park Lamp Loadshed Enabled: Yes

Front Fog Lamp Dropout Enabled: Yes

Combined Rear Lighting Enabled: Yes

Side Repeaters Enabled: No

One Touch Lane Changed: Yes

Exterior Light Loadshed Enabled: Yes

Front Wiper Park Enabled: Yes

Rear Wiper Park Enabled: No

Reversible Washer Pump Enabled: No

Single Element Tail Lamp: No

DRL Configuration: Optional DRL

DRL Lamp Location: None

DRL Dropout Enabled: Yes

Tunnel Detection: No

Military Vehicle Present: No

LED Reverse Lamps Present: No

LED Stop Lamps Present: Yes

LED Rear Turn Lamps Present: Yes

LED Tail Lamps Present: Yes

LED Rear Fog Lamps Present: No

LED License Lamps Present: No

LED Front Turn Lamps Present: Yes

LED Front Fog Lamps Present: No

LED Dedicated DRL Present: No

LED Low Beam Lamps Present: No

LED High Beam Lamps Present: No

LED Front Park/Marker Lamps Present: Yes



[Avh5153]

Illuminated approach Enabled: No

Door Lock Switch Signal Front Left Usage: Driver Door Analog Ajar Switch

Door Lock Switch Signal Front Right Usage: Passenger Door Analog Ajar Switch

TCSM Present: No

Headlamp Wash Spray Duration (at 100 ms intervals): 1200ms

Headlamp Wash Interval: wash cycle #11

Headlamp Wash Shot: Single

Front Wiper Wipes After Wash: 2 Wipes

Headlamp Washer Low Fluid Shut-Off Enable: Yes

Side Mirror Repeaters used as side markers: No

Intermittent Wiper States: 5 Intermittent Wiper position Switch

LED CHMSL Lamp Present: No

CBC Config I/O:

___________________

Ambient Light Dimmer Wheel Input Present: No

Low Beam Output Present: Yes

Backup-Reverse Switch Input Present: No

Front Driver Analog Door Ajar Input Present - Pin F9: Yes

Connector F Pin 23: Door Lock Switch Signal Front Passenger Present: Yes

ERS Switch/Inverter On/Off Switch Input Present: No

Connector F Pin 29: Flipper Glass Ajar Input Present: No

Connector E Pin 15: Fuel Level Sensor #2 Input Present: No

Connector A Pin 11: Hood Ajar Switch Input Present: No

Connector E Pin 14: Hard Top Sense/Stealth Input Present: No

Connector F Pin 21: Inverter Status Input Present: Yes

Connector F Pin 22: Manual T-Case/Analog Spare Input #1 Present: No

Connector F Pin 26: Trunk/Liftgate Ajar Signal Input Present: No

Connector G Pin 18: Left Rear Door Ajar Signal/RLS Analog In 3 Input Present: Yes

Trunk/Flipper Glass Relay Switch Signal Input Present: No

Rear Wiper Motor Park Switch Input Present: No

Connector A Pin 8: Washer Fluid Level Sense Signal Input Present: Yes

Connector E Pin 5: Sunshade Switch Input Present: Yes

Connector E Pin 31: ESM Present - Power Ignition Run: Yes

Connector G Pin 16/Connector E Pin 13: ESP Switch Input Present: Yes

Connector E Pin 35: Adjustable Pedal Motor Relay Output Present: No

Connector F Pin 6: Baggage Compartment Lamps Output Present: Yes

Connector D Pin 7: Diesel Cabin Heater #1 Output Present: No

Connector D Pin 9: Diesel Cabin Heater #2 Output Present: No

Connector D Pin 10: Diesel Cabin Heater #3 Output Present: No

Connector D Pin 11: ESCL Unlock Control Output Present: No

Connector D Pin 12: Diesel Fuel Heater Relay Output Present: No

Right Dedicated DRL Lamp/Right Signature LED Present/Right Front Turn Signal #2/Headlamp Leveling Output Present: No

Left Dedicated DRL Lamps/ Left Front Turn Signal #2/Left Signature LED Present : No

Connector E Pin 34: Flipper Glass #2 Output Present: No

Connector F Pin 7/Connector G Pin 24: Foot Well Lamps Output Present: Yes

Connector A Pin 01 and Connector D Pin 13: Front Fog Lamps Output Present: Yes

Connector D Pin 6: Headlamp Washer Motor Control Output Present: No

110/220 VAC Inverter Power Switch Input Present - Pin F35: Yes

Connector F Pin 38: Snow Plow Low Beam Relay Control LT0/Relay LSD Spare #1 Output Present: No

Connector E Pin 20: HID LSD Output Present/Relay LSD Spare #2 Output Present: No

Connector D Pin 24: Snow Plow LSD #3/Relay LSD Spare #3 Output Present: No

IOD ON LSD Output Present: No

Connector E Pin 10: Head Rest (IOD OFF LSD Output Present): No

Connector G Pin 23: Passenger Airbag Off LED Output Present: No

Connector E Pin 39/Connector F Pin 5: Rear Fog Lamps Output Present: Yes

Connector E Pin 4/Connector F Pin 32: Rear Park Lamps Output Present: Yes

Connector E Pin 3/Connector F Pin 42: Rear Turn Lamps Output Present: No

Auxliary Fuel Pump(Rear Wiper MTR Ctrl/Flipper Glass #1 Output Present): No

Connector E Pin 9: Run-ACC Y Relay #2 Output Present: Yes

Connector A Pin 10 /Connector D Pin 5 : Side Repeaters/Front Side Markers Output Present: No

Connector E pin 8: Sunshade Control Output Present: No

Connector E Pin 42: Ram Box/Tail Gate Lock (Thatum Lock Output) Present: Yes

Connector E Pin 41: Ram Box/Tail Gate Unlock (Thatchum Unlock) Output Present: Yes

Connector E Pin 23: Trailer Backup Lamps Output Present: Yes

Connector E Pin 24: Trailer Tail Lamp Relay Control Output Present: Yes

Connector F Pin 36: Trailer Turn Stop Relay Control Left Output Present: Yes

Connector E Pin 22: Trailer Turn Stop Relay Control Right Output Present: Yes

Connector F Pin 4: Trunk/Flipper Glass Relay Output Present: No

Connector G Pin 15: UGDO Feed Output Present: Yes

Connector G Pin 2: Vehicle Theft Alarm (VTA) Warning LED Output Present: Yes

Connector A Pin 14: Washer Motor Control Right Rear Output Present/Front Camera Washer: No

Connector E Pin 11: Park Brake Input Present: Yes

Connector A Pin 24: Ignition UNLOCK RUN START Present: Yes

Connector E Pin 37: IOD Relay Off HSD (High Side) Present: No

Connector E Pin 7: IOD Relay On High Side Present: No

Connector D Pin 22/ Connector D Pin 23: Ambient Temperature Sensor Present: No

CBC Config I/O Usage:

___________________

ESCL Usage: ESCL

Connector F Pin 22: ANALOG SPARE INPUT #1 Usage: Sunshade Switch

Connector G Pin 8: Trunk/Flipper Glass/Liftgate Release Outside Handle Switch/Upfitter Combined Function: Inside mounted Switch

Connector F Pin 41: Backup-Reverse lamp Left: Yes

Connector E Pin 1: Backup-Reverse lamp Right: Yes

Connector F Pin 5: Fog Lamp Rear Left/High Beam Shutter: Left High Beam Shutter

Connector E Pin 39: Fog Lamp Rear Right/High Beam Shutter: Right High Beam Shutter

Connector F Pin 42: Right Rear Turn Signal: Right Rear Turn Signal

Connector E Pin 3: Left Rear Turn Signal: Left Rear Turn Signal

Connector E Pin 8: Sunshade Control Usage: Sunshade control

Connector D Pin 1: Left High Beam Feed: Left High Beam

Connector A Pin 2: Right High Beam Feed/Right Park Lamp Usage: Right High Beam

Front Driver Door Ajar Switch Signal Usage (Lamp Diagnostics): Left Front Lamp Diagnostics - Jeep/Truck

Front Passenger Door Ajar Switch Signal Usage: Right Front Lamp Diagnostics - Jeep/Truck

Door Ajar Switch Signal Rear Left Usage (Lamp Diagnostics): Left Rear Lamp Diagnostics - Jeep/Truck

Connector F Pin 6: Baggage Compartment Lamps Usage: Truck Cargo Lamps

Connector F Pin 4: Trunk/Flipper Glass Relay Release Usage (IP Decklid Switch SIG on L's): Trunk/Liftgate Release

Connector F Pin 31: Right Rear Lamp Diagnostics/Right Rear Door Ajar Switch Signal Usage: Right Rear Lamp Diagnostics - Jeep/Truck

Connector D Pin 21: Brake Fluid Level Switch: 10K Parallel Resistor

Connector D Pin 12: Diesel Fuel Heater Relay Usage: Connect Output to Run Start Ignition Relay API (Truck Usage)

Connector F Pin 29: Flipper Glass Ajar Signal (Horn Switch input on LA): Horn Switch Input

Relay LSD Spare #1 Usage: Not defined

Relay LSD Spare #2 Usage: Not defined

Spare LSD Relay #3 Usage: Cabin Heater #4

Connector A Pin 11: Hood Ajar Switch Signal Usage: 1K parallel resistor

Connector E Pin 30: ESP Switch/HSD Usage: Cargo Lamp Switch

Connector E Pin 21: Ignition Off Draw (IOD) Relay On LSD Usage: M156 Fuel Door Inhibit

Connector E Pin 10: Ignition Off Draw Relay Off LSD Usage: (WK) Head Rest

Connector E Pin 7: Ignition Off Draw Relay On HSD Usage: Snow Plow Left Turn

Connector E Pin 37: Ignition Off Draw Relay Off HSD Usage: Snow Plow Right Turn Lamp

Left Dedicated DRL/High Beam Usage: Left DRL

Right DRL/High Beam Usage: Right DRL

Connector E Pin 31: ESM Usage/TOPPER CHMSL: Topper CHMSL

Connector E Pin 29: Back-Up Reverse Switch Usage: Reverse Switch

Connector E Pin 42: Thatcham Lock Usage: Ram Box/Tailgate (-)

Ram Box/THATCHAM UNLOCK Usage: Ram Box/Tailgate (+)

Hardtop Stealth Usage: Driver Inside Door Handle Switch/Glove Box Switch ZD

Rear Left Door Ajar Usage: Analog Door Ajar Switch Rear Left

Rear Right Door Ajar Usage: Analog Door Ajar Switch Rear Right

Stop&Start Enable Switch Present: No

2014 CBC Config I/O & Feat.:

___________________



[Avh5153]

Connector F Pin 13: Left Sliding Door Switch Input (B-Pillar)/Analog Spare Input #2: Disabled

Connector F Pin 14: Right Sliding Door Switch Input (B-Pillar)/Analog Spare Input #3: Disabled

Connector F Pin 15: Driver Door Lock Switch/Analog Spare Input #4: Disabled

Connector F Pin 16: Passenger Door Lock Switch/Analog Spare Input #5: Disabled

Analog Spare Input #6: Disabled

Baggage (Cargo) Lamp Output Disabled with vehicle moving: No

CHMSL Lamp Output Disabled: No

Diesel Fuel Heater Enabled: No

Manual Door Locks Present: No

Connector E Pin 48 (Tied internally to Connector A Pin16): Rear Wiper Motor Control Output Present: Rear Wiper

ERS Input Usage: ERS

Rain Sensor Module #2 Present: No

Humidity Sensor Long Present: No

Auto High Beam Module Location: None

Pitch and Roll Present: No

License Plate Lamp Disabled: No

CBC Extern.Light Calibr.:

___________________

Auto Headlamp On Threshold (0-5 V): 3.314 V

Auto Headlamp Off Threshold (0-5 V): 2.549 V

Left Side DRL Voltage Target: 6.0 V

Right Side DRL Voltage Target: 6.0 V

Left Low Beam Voltage Regulation: 13 V

Left High Beam Voltage Regulation: 13 V

Right Low Beam Voltage Regulation: 13 V

Right High Beam Voltage Regulation: 13 V

Left Front Corner Voltage: 13 V

Right Front Corner Voltage: 13 V

Left Rear Corner Voltage: 13 V

Right Rear Corner Voltage: 13 V


Alarm - ITM:

___________________

Siren present: No

Ultrasonics present: No

Tilt Sensor present: No

Brakes:

___________________

Brake System ECU Configuration A: Value 18

Wheel 18 Inch Overall ESC Maserati: Yes

Battery:

___________________

IBS Activate MWU: No

Battery Type: Battery ID 4

IBS Quiescence Current Limit (-250-0 mA): -250.000 mA

IBS Minimum Voltage Limit (0-25.4 V): 5.000 V

IBS Minimal Charge Limit (0-125 Ah): 10.000 Ah

IBS Standby Time (0-7620): 7620.000 sec

IBS Minimum Charge Limit (0-2500mA): 600.000 mA

Cluster:

___________________

Fuel Tank 1 Calibration, E Stop Datum for Fuel Voltage 1: 0

Fuel Tank 1 Calibration, Empty: 2%

Fuel Tank 1 Calibration, LFW: 8%

Cluster:

___________________

Fuel Tank 2 Calibration, Full datum for Fuel Voltage 2: 0

Fuel Tank 2 Calibration, E Stop datum for Fuel Voltage 2: 0

Fuel Tank 2 Calibration, Empty: 2%

Fuel Tank 2 Calibration, LFW: 8%


Doors:

___________________

Global Windows Up: No

Global Windows Down: No

Sun Shade Present: No

Power Folding Mirrors Present: No

Heated Mirrors Present: Yes

Mirror Turn Signals Present: Yes

Driver Memory Mirrors Present: Yes

Passenger Memory Mirror Present: Yes

Electro-Chromatic Driver Mirror Present: No

Electro-Chromatic Passenger Mirror Present: No

Tow Mirror Present: Yes

Blindspot Mirror Present: No

Mirror Approach Lights Present: Yes

Door Map Pocket LED Present (Ambient Lights): Yes

Door Courtesy Lamps Present: No

Window Motor Type: No

Window Hall Sensors Present: No

Door Handle LED Present (Ambient Lights): Yes

Frameless Window Present: No

LIN and Misc:

___________________

Fobik Safe Alert No Reply: No

Fobik Safe Alert on System Fault: No

Fobik Safe Alert on Search Timeout: No

Snow Plow Enabled: No

Panic Enabled: Yes

Compass Mounting Orientation: Upside Down

Washer Fluid Level Voltage Threshold: 4.06 V

Fobik Safe Alert Per Ignition Cycle Counter: 2

IBS Present: Yes

ASBMM Present: No

RCM Present: No

Humidity Rain Light Sensor Present: No

Manual Trans Present: Yes

Smart Beam Present (AHBM): No

DC to DC Converter Present: No

ASBM Present: Yes

Auto Relock Time (1-255 sec): 60.000 sec

Vehicle Theft Alarm (VTA) System State: VTA

Electronic Overhead Module (EOM) Present: Yes

DC to DC Converter #2 Present: No

Illuminated Approach Interior Lighting Target Percent: 150 (75%)

Illuminated Approach Headlamp Target Percentage: 165 (82.50%)

Illuminated Approach Taillamp Target Percentage: 165 (82.50%)

Illuminated Approach Interior Lighting Ramp Up Time: 150 (3000 ms)

CRVMM Present: No

Clock Module Present: No

EVIC Switch Module Present: No

Terrain Switch Bank Module (TSBM) Module Present: No

Compass Mounting Angle (0-360 Deg.): 0.000 Deg.

Memory:

___________________

Memory Adjustable Pedals Present: No

Tilt/Telescope Steering Present: No

Memory Seat Present: Yes

Rear Heated Seats Present: No

Front Vented Seats Present: Yes

Heated Steering Wheel Present: Yes

Heated Seat Material Type: Perforated Leather

Heated Wheel Material Type: Full Leather



Powertrain:

___________________

Vehicle is Equipped with Dosing Control Unit: Yes

Vehicle is equipped with Variable Geomeric Turbo Actuator: Yes

ECO Mode Configuration: Not Available

Dual Alternator Present: No

Safety:

___________________

ODS Present: No

Side Airbags present: No

Integrated EPP Present: No

BUX Market: No





Wireless:

___________________

Tip Start Present: No

AP5 Trunk Unlock: Not Present

Airport Scenario Trunk set: No

AP1 Left Front: Not Present

AP2 Right Front: Not Present

AP3 Left Rear: Not Present

AP4 Right Front: Not Set

Cust.Prog.Features:

___________________

Sound Horn on Lock: Enabled

Sound Horn on Remote Start: Enabled

Flash Lamps on Lock: Enabled

Headlamps ON with Wipers: Enabled

Auto Wipers: Not enabled

Auto Lock: Enabled

Auto Unlock: Enabled

Delay Lock: Not enabled

Illuminated Approach Time (0-254 sec): 30.000 sec

Headlamp Delay Time (0-254 sec): 0.000 sec

Accessory Delay Time (0-65534 sec): 45.000 sec

Daytime Running Lamps: Enabled

Auto High Beam: Not enabled

Door Alert Enable: Not enabled

One Press All Unlock Enable: Enabled

Auto Relock: Enabled

EC Mirror Auto-Dimming Enabled: Enabled

Remote Lowering Horn Enabled: Not enabled

Remote Lowering Lights Enabled: Not enabled

Ambient Dimmer Level (0-100%): 100.000 %


Cabin Net:

___________________

RBSM Right Blind Spot Module: Not enabled

BSS Blind-Spot Sensor/LBSS Left Blind-Spot Sensor: Not enabled

BCM Body Interior Bus: Enabled

HSM Heated Seat Module: Enabled

DDM Driver Door Module: Enabled

PDM Passenger Door Module: Enabled

DMRL Door Module Rear Left: Not enabled

DMRR Door Module Rear Right: Not enabled

HVAC Heat Ventillation Air Conditioner: Enabled

MSM Memory Seat Module: Enabled

PLGM Power Liftgate Module: Not enabled

PSDML Power Sliding Door Left: Not enabled

PSDMR Power Sliding Door Right: Not enabled

FSM Fold Stow Module: Not enabled

PTCM Power Top Control: Not enabled

RBC Regenerative Brakes Control: Not enabled

Radio/TGW Telematic Gateway: Enabled

Clock: Not enabled

VSIM Vehicle System Interface: Not enabled

ITM Intrusion Module: Not enabled

AMP Amplifier: Enabled

EDM External Disc Module: Enabled

HFM/CTM Hands-Free Module: Not enabled

ICS Integrated Center Stack: Enabled

VES2 Vehicle Entertainment 2nd Row: Not enabled

VES3 Vehicle Entertainment Last Row: Not enabled

CRSM Comfort Rear Seats Module: Not enabled

HVAC_R Rear Heat Ventillation Air Conditioner: Not enabled

P/T Chassis Net:

___________________

ACC Adaptive Cruise Control: Not enabled

ADCM Active Dumping Control: Not enabled

AHLM/AFLS Headlamp Leveling: Not enabled

VSIM Vehicle System Interface: Not enabled

ASCM Air Suspension Control Module: Not enabled

BCM (PT) Body Control Module: Enabled

DTCM Drive Train Control: Enabled

ECM/PCM Powertrain Control: Enabled

EPS Electric Power Steering: Not enabled

ESM Electronic Shift Module: Not enabled

ABS/ESC: Enabled

EPB Electronic Parking Brake: Not enabled

RFH Radio Frequency Hub: Enabled

IPC Instrument Panel: Enabled

ACC/DASM Adaptive Cruise Control/Driver Assistance Module: Not enabled

FDCM Final Drive Control: Not enabled

EPPM Electronic Pedestrian Protection: Not enabled

ORC Occupant Restraint control: Enabled

PTS Parktronics: Not enabled

RBT Driver: Not enabled

RBT Passenger: Not enabled

SCCM Steering Column Control: Enabled

ELSD Electronic Limited Slip Differential: Not enabled

TCM Transmission Control: Not enabled

TPM Tire Pressure Control: Enabled

PASS (PT) Personal Assistance and Safety Services: Not enabled

AFLS Discharge lamps: Not enabled

ITBM/HWM Integrated Trailer Brake Module: Enabled

OCM Occupant Classification Module: Not enabled

FFCM/HALF Front Facing Camera Module: Not enabled

ANC Active Noise Cancellation: Not enabled

Audio/Telemat Net:

___________________

AMP Amplifier: Not enabled

ICS Integrated Center Stack: Not enabled

PASS (A/T) Personal Assistance and Safety Services: Not enabled

SDARV Satellite Video Receiver: Not enabled

VES3 Vehicle Entertainment Last Row: Not enabled

VES2 Vehicle Entertainment 2nd Row: Not enabled

DVD Changer: Not enabled

HFM Hands Free Module: Not enabled

Hybrid LAN Net:

___________________

APM Accessory Power Module: Not enabled

TCM Transmission Control: Not enabled

BPCM Battery Pack Control: Not enabled

HCP Hybrid Control Processor: Not enabled

MCPA Motor Control Processor A: Not enabled

MCPB/ESC Motor Control Processor B: Not enabled



[Avh5153]

Can you post your BCM settings? I know my HVAC contros freaked out when I had the CSMs for other measures/units (power units, temp unita, torque units, etc) turned on. After I turned all those off and only set the US/metric CSM my controls returned to normal.

Sent from my SM-N986U using Tapatalk

Sorry for posting here in multiple posts but couldn't get the file to upload. I did a search and couldn't find much related to units, but what you're saying makes a lot of sense. Let me know what else you think I could take a look at.



[Roman217]

Sorry for posting here in multiple posts but couldn't get the file to upload. I did a search and couldn't find much related to units, but what you're saying makes a lot of sense. Let me know what else you think I could take a look at.

Interesting, the 2013 BCM doesn't have a section for the "customer settings menu" options. Do you have the windows or Android version of AlfaOBD?


Sent from my iPad using Tapatalk



[SitKneelBend]

Interesting, the 2013 BCM doesn't have a section for the "customer settings menu" options. Do you have the windows or Android version of AlfaOBD?


Sent from my iPad using Tapatalk

The 2013 7" EVIC also won't display any customer settings menus either.

Sent from my HTC U11 using Tapatalk



[Avh5153]

Interesting, the 2013 BCM doesn't have a section for the "customer settings menu" options. Do you have the windows or Android version of AlfaOBD?


Sent from my iPad using Tapatalk

Android version
