My Head Light Build thread. So Far...

[OC455]

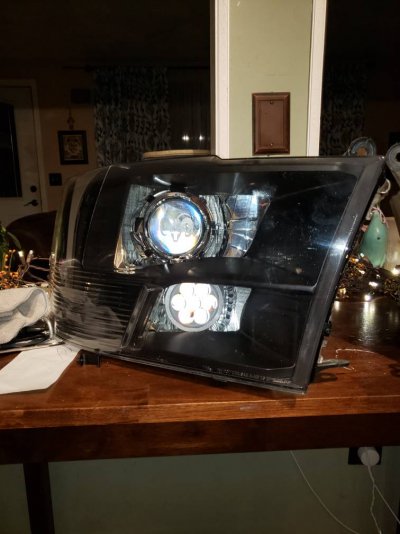

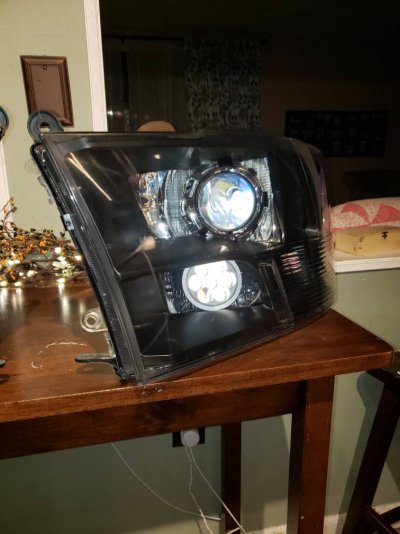

I closed up the headlights and sealed them with the butyl rubber. I think I got everything pretty well cleaned up inside and out aside from the light scratches on the outside of the lenses.

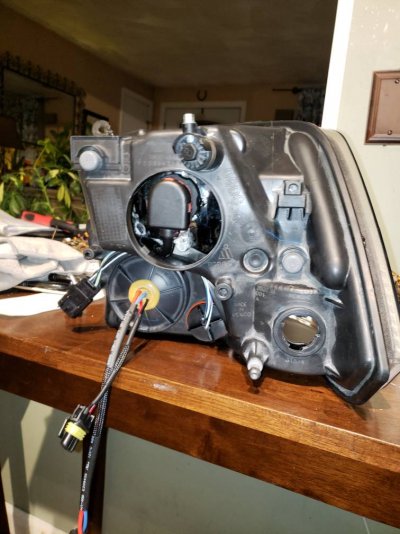

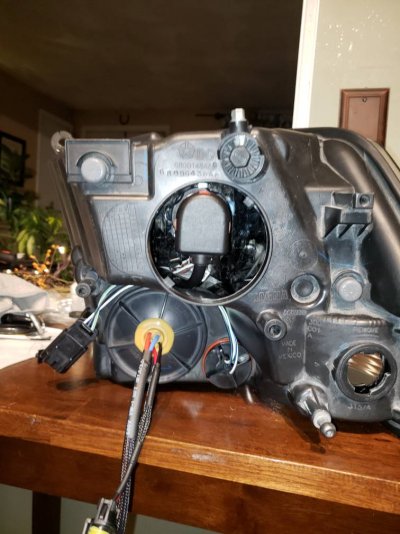

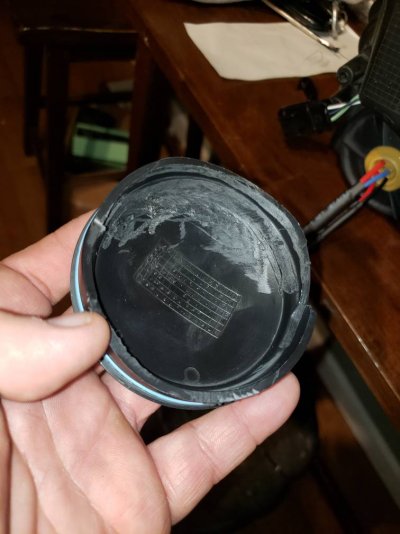

Only other minor mod I need to do is clearance the inside of the upper dust cap, to sit tight and flush with out hitting the D2S plug..

Other than that, ready to go in tomorrow if I get time.

Sent from my SM-N960U using Tapatalk



[OC455]

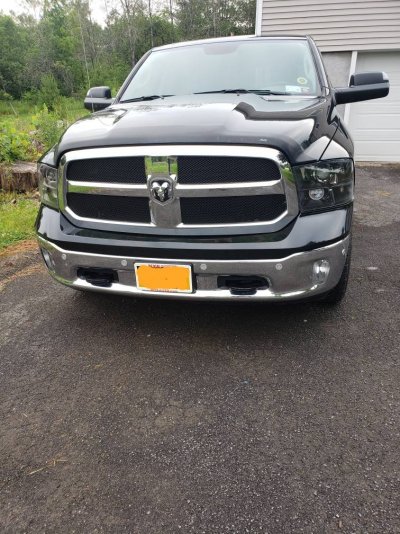

Got them.in and set AlfaOBD to where they needed to be.

So far they look good and no bulb out errors.

Sent from my SM-N960U using Tapatalk



[OC455]

I did notice that when I turned off the lights and was in drive, the high beams were on for the DRL. They were not very bright, and the passenger side was dimmer than the driver's side.



[1500ram12]

I did notice that when I turned off the lights and was in drive, the high beams were on for the DRL. They were not very bright, and the passenger side was dimmer than the driver's side.

The drl voltage is only like 7.4v I believe maybe less with high beams. You should be able to change the voltage with alphaobd. I know you can for dedicated drl's


Sent from my iPhone using Tapatalk Pro



[OC455]



[1500ram12]

Also Do you have your drl's set to led's


Sent from my iPhone using Tapatalk Pro



[RusslRam]

Unless required by law or needed I would turn off high beam as DRL and just use parking lights as your DRL. I would hate for the high beams to be over worked and fail. I doubt they will but still a little piece of mind after all that hard work. Turn signal/switchbacks are a lot easier to replace.

Sent from my Pixel using Tapatalk



[1500ram12]

Unless required by law or needed I would turn off high beam as DRL and just use parking lights as your DRL. I would hate for the high beams to be over worked and fail. I doubt they will but still a little piece of mind after all that hard work. Turn signal/switchbacks are a lot easier to replace.

Sent from my Pixel using Tapatalk

The Hi-Lense does have a drl feature. He would have to run the dedicated drl feed to use it or tap into the parking lights.


Sent from my iPhone using Tapatalk Pro



[hemili8r]

I did notice that when I turned off the lights and was in drive, the high beams were on for the DRL. They were not very bright, and the passenger side was dimmer than the driver's side.

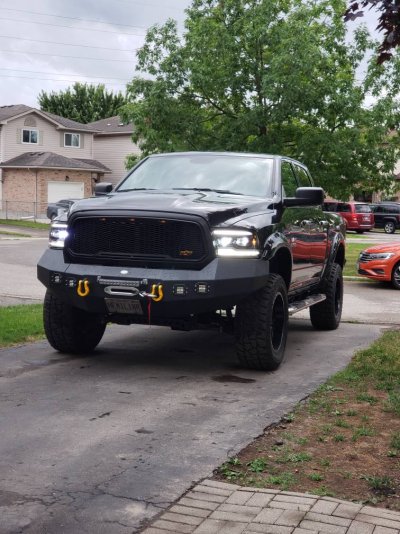

Wow I have the same issue with my morimotos in gear in off position they went bright but in park it was normal..wow same issue.
No issue other than that. Love these lights.

Sent from my SM-N960W using Tapatalk



[hemili8r]

Wow I have the same issue with my morimotos in gear in off position they went bright but in park it was normal..wow same issue.
No issue other than that. Love these lights.

Sent from my SM-N960W using Tapatalk

With lights off

Sent from my SM-N960W using Tapatalk



[OC455]

Unless required by law or needed I would turn off high beam as DRL and just use parking lights as your DRL. I would hate for the high beams to be over worked and fail. I doubt they will but still a little piece of mind after all that hard work. Turn signal/switchbacks are a lot easier to replace.

Sent from my Pixel using Tapatalk

Maybe I will just do that. I think DRL feature helped me out a few times when I was driving. Not required by law, but I also dont need to be pulled over because of a pulsing white light, which is not legal. I dont need switchbacks to have it run as a DRl do.I?

Sent from my SM-N960U using Tapatalk



[1500ram12]

Maybe I will just do that. I think DRL feature helped me out a few times when I was driving. Not required by law, but I also dont need to be pulled over because of a pulsing white light, which is not legal. I dont need switchbacks to have it run as a DRl do.I?

Sent from my SM-N960U using Tapatalk

Nope. Just with the switchbacks you'd have a white drl not amber.


Sent from my iPhone using Tapatalk Pro



[OC455]

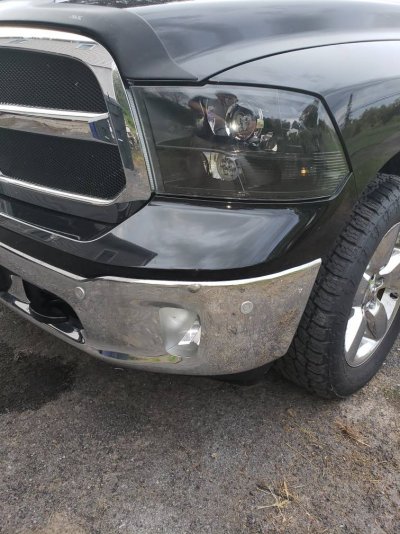

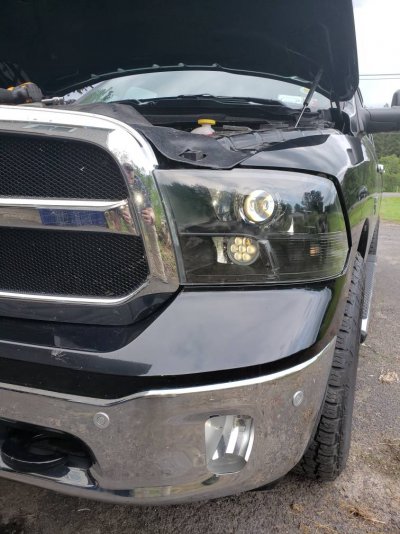

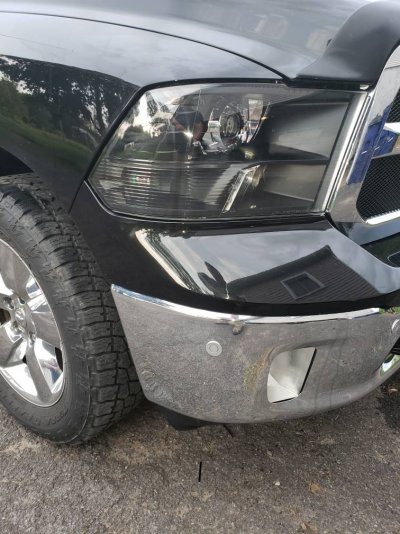

I love the way these look.

The black bezels and the chrome shrouds and buckets. Pretty much in my opinion a good mix of black and chrome.

Sent from my SM-N960U using Tapatalk



[OC455]

Need to finish up the fog light projector build now....



[OC455]

I think I may need to adjust my lights up a bit. Low beams seem like they are only lighting up just in front of the truck.



[OC455]

List of things I actually used to build my headlights.

Morimoto Mini D2S projectors (low/high beam): https://www.theretrofitsource.com/bi-xenon-morimoto-mini-d2s-4-0-projectors-55833.html

Profile Hi-Lens LED projectors (high beam): https://www.theretrofitsource.com/bi-led-profile-hi-lens-led-high-beam.html

9006/9005 splitters x2: https://www.theretrofitsource.com/high-beam-splitters.html

D2S to AMP 90 degree connector x2: https://www.theretrofitsource.com/amp-to-d2s-ballast-adapters.html

AMP extension: https://www.theretrofitsource.com/amp-extensions-49122.html (modified, bought AMP connectors 2 male/2 female)

H11/9006 adapter x2: https://www.theretrofitsource.com/headlight-socket-adapters.html?preselect=49229

Morimoto XB55 ballasts/ignitors x2: https://www.theretrofitsource.com/amp-morimoto-xb55.html

Morimoto XB50 D2S bulbs 5800k x2: https://www.theretrofitsource.com/d2s-50w-morimoto-xb-hid.html?preselect=54703

Morimoto Retro-rubber: https://www.theretrofitsource.com/morimoto-retrorubber-butyl-glue-52001.html

Gatling Gun 1.0 shrouds: https://www.theretrofitsource.com/gatling-gun-1-471.html

Wiring seal (4 wire) x2: https://www.theretrofitsource.com/4-position-wiring-seal.html

Motohold2rs: https://www.theretrofitsource.com/morimoto-mini-d2s-moto-hold2rs-bulb-lock-rings.html

Profile Peak 3157 amber LED turn signals

Did not use any of the other items(wiring harness) I thought I would need because I purchased the AlfaOBD app and the MX bluetooth dongle. JB Weld to attach the shrouds. Krylon satin black spray paint for the OEM bezel.



[OC455]

I set my DRL's to the turn/park signals. They light up nice and bright. I'm thinking maybe some Profile Peak switchback 3157's......I dunno. I don't want to take the lights out again. LOL.



[OC455]

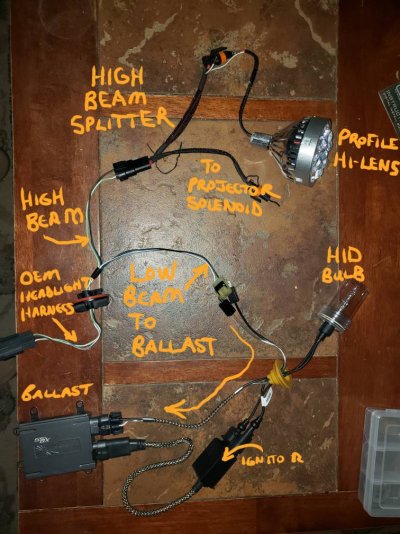

One of the big things that I confused myself with more than anything was how to wire the HIDs with the LED projectors.

Using AlfaOBD eliminated the wiring harness and relays. If this helps anyone with how to get everything hooked up and working, cool.



Sent from my SM-N960U using Tapatalk



[Guillermo Arevalo]

One of the big things that I confused myself with more than anything was how to wire the HIDs with the LED projectors.

Using AlfaOBD eliminated the wiring harness and relays. If this helps anyone with how to get everything hooked up and working, cool.



Sent from my SM-N960U using Tapatalk

so the high beam splitter basically lifts the shutter in the projector so that also works as a high beam right?



[OC455]

so the high beam splitter basically lifts the shutter in the projector so that also works as a high beam right?

Yes.

I didn't have a spare projector laying around to hook up....LOL

Even if you didn't use a LED projector like the Hi-Lens, you could keep it a stock halogen or replace it with a quality LED bulb in the housing, still utilizing the splitter to activate the shutter solenoid. Or not use the splitter at all, and just plug in the OEM harness into the high beam bulb and forego using the projector solenoid.

Confused yet??? There are a few things that can be done option wise when building.
