INFO - 2013-2018 8.4A /AN FW Notes (RA3/VP3-NA & RA4/VP4-NA & UAx)

[Mpgrimm2]

VIN is mainly useful to get software/firmware updates as they come out.

If you punch in the supposed VIN at the uConnect sw update site, it should confirm the basic radio(ie 8.4a or 8.4AN) and the year/model of truck it came from ...
uConnect firmware updates

Up All Night Sleep All Day via my LG G4 on Tapatalk



[12_Ram]

The horn with lock setting is in the radio in the RA2 as well. It should show in your settings menu on your 8.4 as well. I lost my option to turn my turn by turn on and off after my update. Sometimes we do lose the ability to turn certain functions on an off but I haven't heard of losing the horn with lock function. You probably already have checked this but I would go through all your settings to see if somehow it got moved. Also in some cases people have had features return after a few on off cycles.

I've checked everything, the setting is just not there. I've had the RA3 in my truck for probably 5 months now and I've looked several times. I've read sometimes that some of those options are in the Evic in the cluster. Hoping that when I do my premium cluster upgrade the setting might be there but if not oh well.



[R.L.K.]

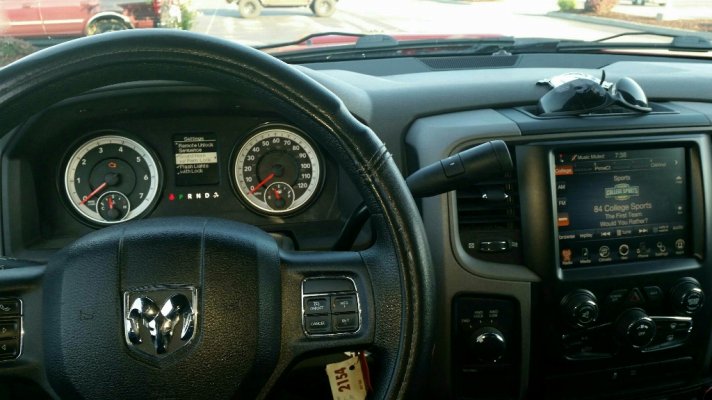

The horn with lock was an available option for my 14 Express in the evic / cluster back when I had the RA1 3.0 and stock 3.5" cluster ? ??



[12_Ram]

INFO - 2013, 2014, 2015 8.4AN FW Notes (RA4/VP4 NA)

The horn with lock was an available option for my 14 Express in the evic / cluster back when I had the RA1 3.0 and stock 3.5" cluster ? ??

It was in my RA2 5.0 before I swapped to the RA3 8.4 I guess I'll see if I get it back when I do the cluster upgrade but who knows. It's weird it retained all other settings in the swap but that one. My RA3 came out of a 14 2500 so I'm not sure if maybe some of the settings were different on it or what.



[R.L.K.]

I still have the horn with lock option on the cluster , and it's also in the radio settings as well ?
The radio I have installed today
Is an RA4 8.4 CA, tomorrow I'll have the RA4 8.4NA , I'll see if it changes then ...

Good luck !



[12_Ram]

INFO - 2013, 2014, 2015 8.4AN FW Notes (RA4/VP4 NA)

Yea it's weird in my 15 my cluster doesn't even have a settings tab. It's just the speedo, trips, fuel, and screen setup but no settings



[Mpgrimm2]

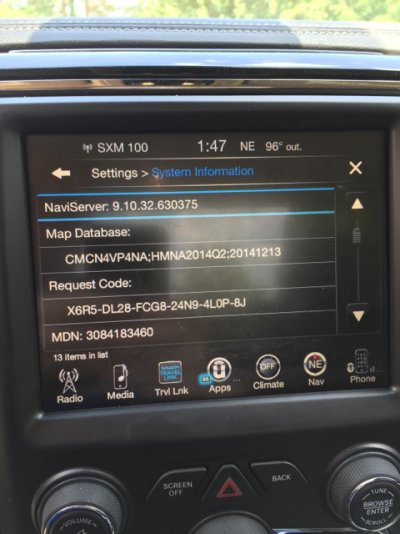

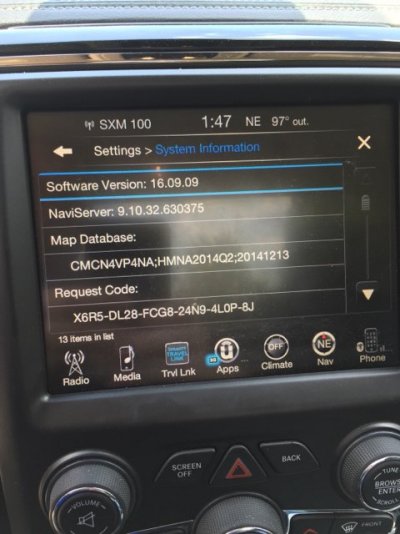

Looks like 16.09.09 is the latest official fw for 2016 Vp4-NA RA4 radios.

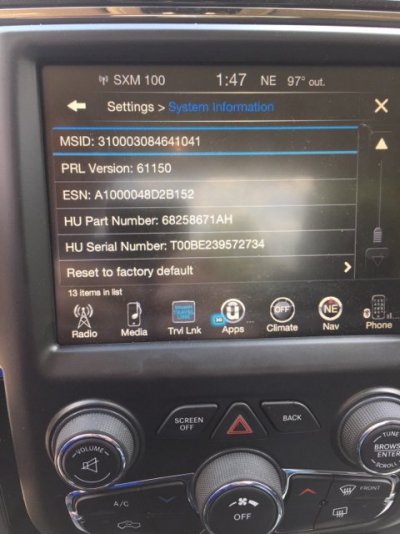

Per ernbrdn and his factory 2016 RA4

Yes sorry the button combination you gave me actually did nothing on my radio except change the HVAC. I think I found what your were wanting actually from the settings app.
As far as the backup camera issue, I'm debating cancelling the dealership appointment since I applied an update over the weekend the problem has not rose again.

Up All Night Sleep All Day via my LG G4 on Tapatalk



[Mpgrimm2]

FYI:
Downloading the 2016 RA4 (My16) VP4-NA v16.09.09 FW update now and will post a DL link later along with the TSB reference.

Here is the an excerpt of the contents of the changes for TSB 08-057-16 (v16.09.09 fw) courtesy of our friends over at wk2jeeps.com :

NUMBER: 08-057-16
GROUP: Electrical
DATE: May 03, 2016

SUBJECT: RA3 RA4 Radio Enhancements

OVERVIEW: This bulletin involves inspecting and, if required, updating the radio software.

MODELS:
2016 (UF) Chrysler 200
2016 (DF) Ram 3500 10K Cab Chassis
2016 (WK) Jeep Grand Cherokee
2016 (KL) Jeep Cherokee
2016 (LA) Dodge Challenger
2016 (ZD) Dodge Viper
2016 (WD) Dodge Durango
[B]2016 (DS) Ram 1500 Pickup
2016 (DJ) Ram 2500 Pickup
[/B]2016 (LD) Dodge Charger
[B]2016 (DD) Ram 3500 Cab Chassis
2016 (DP) Ram 4500/5500 Cab Chassis
2016 (D2) Ram 3500 Pickup[/B]
2016 (DX) Ram Truck (Mexico)
2016 (LX) Chrysler 300
NOTE: This bulletin applies to vehicles within the following markets/countries:
NAFTA.

NOTE: This bulletin applies to vehicles built on or before April 02, 2016 (MDH
0402XX) equipped with Uconnect 8.4 (Sales Code RA3) or Uconnect 8.4AN
(Sales Code RA4).


SYMPTOM/CONDITION:

A small number of customers may experience one or more of the following:

· Navigation failed message is displayed.
· Clock not automatically updating to local time.
· Poor or no connection to cellular network.
· HVAC temperature out of sync with radio display (KL vehicles).
· Display goes blank/black.
· Radio locks up.
· Some Uconnect App remote commands do not execute with the vehicle.



[Mpgrimm2]

Post 5 updated with 2016 RA4 Fw links.
http://www.ramforum.com/f75/info_-_2013_2014_2015_8_4an_fw_notes_ra4_vp4_na-73871/#post1125807



[Mpgrimm2]

Cmacks88's 2016 RA4...

And I also concur with the last few posters. Currently running a 2016 RA4 in my 2014 express

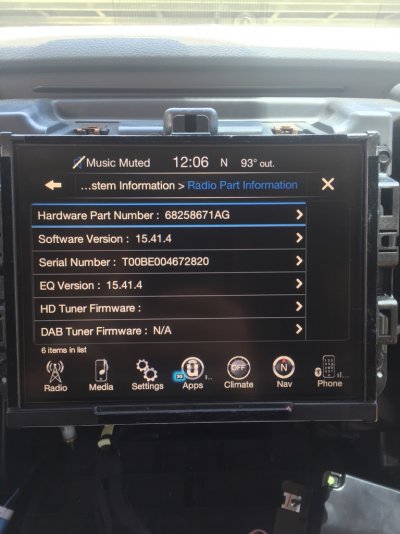

Talking about this? Ended up taking this during the install.

Up All Night Sleep All Day via my LG G4 on Tapatalk



[R.L.K.]

Mike you may have this info already , but here is my current radio ( from RicksRam ) installed in my 2014 Ram Express , original RA1 .
EVERYTHING WORKS GREAT WITH THIS FIRMWARE VERSION !



[R.L.K.]

Sorry I'm still struggling with my photos on Tapatalk



[Mpgrimm2]

Thanks Ron. Looks like you have a 2013 RA4 (05091051AG) with fw v13.48.3 in your 2014 Truck.

So... you gonna update the fw to 16.13.13 or leave it as is?
(Not much reward for the risk I suppose)

Up All Night Sleep All Day via my LG G4 on Tapatalk



[Jared4.7]

Thanks Ron. Looks like you have a 2013 RA4 (05091051AG) with fw v13.48.3 in your 2014 Truck.

So... you gonna update the fw to 16.13.13 or leave it as is?
(Not much reward for the risk I suppose)

Up All Night Sleep All Day via my LG G4 on Tapatalk

16.13.13 is working really well on my 14. I can now hit my phone button on the wheel and say "send message" and it works! Whereas before I could not.



[Express Man]

16.13.13 is working really well on my 14. I can now hit my phone button on the wheel and say "send message" and it works! Whereas before I could not.

Same with me on my 2014 Ra4. It's nice having thar work now.

Sent from my SM-G900R6 using Tapatalk



[R.L.K.]

16.13.13 is working really well on my 14. I can now hit my phone button on the wheel and say "send message" and it works! Whereas before I could not.

Leaving mine as is ! I can hit the phone button to send messages now by Voice ! I'm Happy Happy HAPPY !



[Jared4.7]

One other thing I noticed about 16.13.13 is that my radio no longer has that dumb uConnect ringtone. It will now play the ringtone of my phone through the trucks speakers.



[Mpgrimm2]

Just for reference...

Okay my 16 RA 4 works great in my 14 Ram. I installed the factory Media Hub with the SD slot when I had my 14 RA 4 and it worked great. When I installed the 16 all of the media ports loaded exept the SD port. I realy like using the SD slot It's small has enty of room for tons of songs and is out of the way plus it leaves the USB port open for charging my phone. I sent the radio to Navrepair to have the SD slot activated. They emailed me after they received the radio saying they could not enable the ports because it was a 16. The 16 radio has a different file system and has to read the vehicle. I kinda wish they would have mentioned that on there website before I spent the money on shipping. But here is the kicker. They have been developing a new product that plugs into the OBD2 port to enable features. They already have it for the Mustang and Challenger. They offered to refund my money for the programming they were unable to do and send me the OBD Genie to activate the ports. I told him I had never heard of it and Austin told me that they haven't even released it yet. He said they could enable just about anything when they finally release it. It's 199.00 so it's not cheap. I am not sure how well its going to work or if you can keep the same Genie and have them load options in it as they become available. It's kinda like a lock pic I suppose but maybe a little easier to use. In any case if you have a 16 RA4 don't bother sending it in to have the Media Ports activate because according to Navrepair it cannot be done out of the vehicle. We have seen them have incorrect information before so who knows....Oh one other note. You do not have to leave the Genie in your OBD2 port. Once it's programed into your truck you can remove it.

I am supposed to get it tomorrow so I will let everyone know how it works. They are only developing it for the radio aspect of it but I am sure they could probably do more with it. They asked me what year make and model my truck was plus I had already given them my vin#. Honestly almost afraid to even plug it in when I get it since my radio is a 16 in a 14. It works great and I know the 16 radios can be finicky.

Up All Night Sleep All Day via my LG G4 on Tapatalk



[JRG18]

My FW can be updated to 16.13.13 on the first page. Everything seems to be working fine.



[Mpgrimm2]

My FW can be updated to 16.13.13 on the first page. Everything seems to be working fine.

Huh?
