P0481 Error - Elusive Cooling Fan Relay 2 Location

Discussion in 'Tech Info' started by Brian8563, Aug 12, 2019.

  1. Brian8563

    Brian8563 Junior Member

    Age:
    64
    Posts:
    8
    Likes Received:
    0
    Joined:
    Aug 12, 2019
    Location:
    WISCONSIN
    Ram Year:
    2016
    Engine:
    Hemi 5.7
    Where is this relay located on a 2016 Ram 1500 with a 5.7? Thanks!

  2. Brian8563

    Brian8563 Junior Member

    Age:
    64
    Posts:
    8
    Likes Received:
    0
    Joined:
    Aug 12, 2019
    Location:
    WISCONSIN
    Ram Year:
    2016
    Engine:
    Hemi 5.7
    It has been suggested that it is in the power distribution center F01. F01 is position is empty.


  3. Brian8563

    Brian8563 Junior Member

    Age:
    64
    Posts:
    8
    Likes Received:
    0
    Joined:
    Aug 12, 2019
    Location:
    WISCONSIN
    Ram Year:
    2016
    Engine:
    Hemi 5.7
    It has been suggested that it is near the horn. Nope, just the horn there. No relay.


  4. Brian8563

    Brian8563 Junior Member

    Age:
    64
    Posts:
    8
    Likes Received:
    0
    Joined:
    Aug 12, 2019
    Location:
    WISCONSIN
    Ram Year:
    2016
    Engine:
    Hemi 5.7
    Underneath the power distribution center? Not literally and I did not see any obvious relay in the area...


  5. Brian8563

    Brian8563 Junior Member

    Age:
    64
    Posts:
    8
    Likes Received:
    0
    Joined:
    Aug 12, 2019
    Location:
    WISCONSIN
    Ram Year:
    2016
    Engine:
    Hemi 5.7

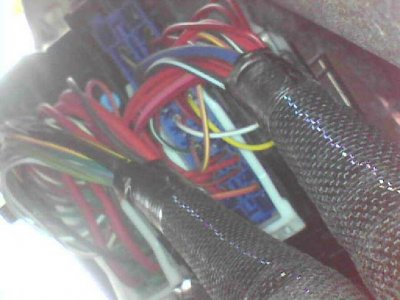

    Perhaps that meant - under the fuse board in the power distribution center... A swing and a miss as far as I can tell. 2019-08-12-19-34-46.jpg 2019-08-12-19-35-27.jpg IMG_20190812_192821534.jpg

  6. Brian8563

    Brian8563 Junior Member

    Age:
    64
    Posts:
    8
    Likes Received:
    0
    Joined:
    Aug 12, 2019
    Location:
    WISCONSIN
    Ram Year:
    2016
    Engine:
    Hemi 5.7
    Between the grill and the radiator??? Just air!





  7. Jimmy07

    Jimmy07 Senior Member

    Posts:
    1,518
    Likes Received:
    1,010
    Joined:
    Feb 23, 2017
    Ram Year:
    2017
    Engine:
    6.4 Hemi
    [​IMG]

  8. Tach_tech

    Tach_tech Senior Member

    Age:
    33
    Posts:
    1,908
    Likes Received:
    1,521
    Joined:
    Jun 1, 2014
    Ram Year:
    2017
    Engine:
    5.7L HEMI
    Did you install a relay into the high position?

  9. Brian8563

    Brian8563 Junior Member

    Age:
    64
    Posts:
    8
    Likes Received:
    0
    Joined:
    Aug 12, 2019
    Location:
    WISCONSIN
    Ram Year:
    2016
    Engine:
    Hemi 5.7
    I did not and was not planning to. As far as I know it has never been populated. Should I install one?

  10. Tach_tech

    Tach_tech Senior Member

    Age:
    33
    Posts:
    1,908
    Likes Received:
    1,521
    Joined:
    Jun 1, 2014
    Ram Year:
    2017
    Engine:
    5.7L HEMI

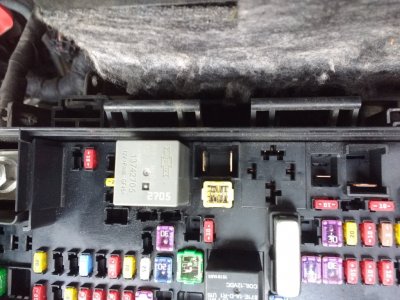

    I would install a relay. That is the correct location for the high speed relay, and it’s missing.
