Installing a 2019-2021 12.1 (UAX) Radio in 4th Gen RAM

[skuppy069]

Pics?

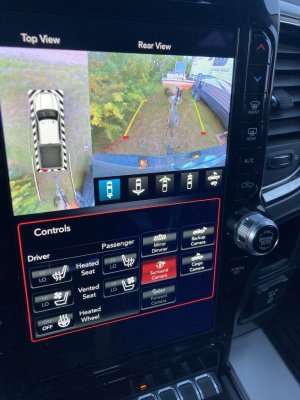

Here is One from last night at the camp site



[Treburkulosis]

Here is One from last night at the camp site

View attachment 250318

That thing is gorgeous!



[PJs97Talon]

I know there was something that needed to be changed when going from the single-piece radio units to the multi-piece divorced units. Before I go and plug one of these into my truck and do some testing- what was it that I need to change in the BCM?



[Mpgrimm2]

Sooooo..... I've got a couple of the UAX displays sitting here at home now and had the other thread bookmarked to reference. Now that thread comes up as dead? Anyone know why?
5th Gen 8.4 UAV Radio in a 4th Gen (And Possible Surround View) | DODGE RAM FORUM - Dodge Truck Forums

@MADDOG

@rule18

@Shaggy

@Jimmy07

@Roman217

Any updates on getting that thread back/ what happened Brian?


M² Mods.
(via Tapatalk App)



[Mpgrimm2]

I know there was something that needed to be changed when going from the single-piece radio units to the multi-piece divorced units. Before I go and plug one of these into my truck and do some testing- what was it that I need to change in the BCM?

I've never done this (yet) and can't recall exactly, what was posted before but it had something to do with Cabin Net Disassociated Screen Module or something like that. I'm sure @Jimmy07 will know exactly which one it is.


M² Mods.
(via Tapatalk App)



[Mpgrimm2]

Sooooo..... That thread comes up as dead? Anyone know why?
5th Gen 8.4 UAV Radio in a 4th Gen (And Possible Surround View) | DODGE RAM FORUM - Dodge Truck Forums

G-Ride990 got the UAV thread restored....



[knightjp]

I would like to see how the 12" screen looks when retrofitted into the 4th Ram. Do you have a picture of the complete dash?



[Mpgrimm2]

See here...

5th Gen 8.4 UAV Radio in a 4th Gen (And Possible Surround View)

Do these units have actual real wireless Android Auto and/or CarPlay? These do not. UConnect 5 will have wireless AA and ACP.

www.ramforum.com



[PJs97Talon]

Well I think I've decided to just swap the entire dash from a 21 truck into mine. It will make the 12.1" radio fit like it should. I have a few 0 mile trucks at work I can get to and just swap over the entire interior so my 14 will basically be a 21 inside wise. I need to find the correct switch panel for below the radio from the correct 1500 (Air suspension, parking sensors, heat/cooled seats, heated wheel) and figure out if the gear selector and headlight switches will just plug in and work. I know the trailer brake controller will from what I've seen.



[SitKneelBend]

Well I think I've decided to just swap the entire dash from a 21 truck into mine. It will make the 12.1" radio fit like it should. I have a few 0 mile trucks at work I can get to and just swap over the entire interior so my 14 will basically be a 21 inside wise. I need to find the correct switch panel for below the radio from the correct 1500 (Air suspension, parking sensors, heat/cooled seats, heated wheel) and figure out if the gear selector and headlight switches will just plug in and work. I know the trailer brake controller will from what I've seen.

Pictures or it didn't happen (if you do)!



[skuppy069]

Well I think I've decided to just swap the entire dash from a 21 truck into mine. It will make the 12.1" radio fit like it should. I have a few 0 mile trucks at work I can get to and just swap over the entire interior so my 14 will basically be a 21 inside wise. I need to find the correct switch panel for below the radio from the correct 1500 (Air suspension, parking sensors, heat/cooled seats, heated wheel) and figure out if the gear selector and headlight switches will just plug in and work. I know the trailer brake controller will from what I've seen.

I hope it works out good.
All I can say is a want to see what it looks like when done .
Good luck



[Richmond2000]

Pictures or it didn't happen (if you do)!

any update on this swap?



[PJs97Talon]

any update on this swap?

Nope. I've been super busy with work and haven't had much time for taking my truck apart. Ram/FCA/Whatever hasn't released the brand new trucks I have to be dismantled yet either. I'm planning on getting the dash, the headlight switch and rotary shifter from a 2500. I might just go ahead and get the full interior (-airbags and IP) because new seats are nice.



[Jimmy07]

Nope. I've been super busy with work and haven't had much time for taking my truck apart. Ram/FCA/Whatever hasn't released the brand new trucks I have to be dismantled yet either. I'm planning on getting the dash, the headlight switch and rotary shifter from a 2500. I might just go ahead and get the full interior (-airbags and IP) because new seats are nice.

I now have a dash and center console to swap in. I recently tested the headlight switch, which doesn’t really work on the 4th gens- the headlight settings are backwards, no cargo lights, etc. The transfer case switch doesn’t work at all. The main thing I’ll be testing next is the newer hvac module, since the entire hvac system has to be swapped over along with the dash. Basically, we need a 2019+ BCM swapped in to make a dash swap work, but it hasn’t been working out for us so far.



[PJs97Talon]

I now have a dash and center console to swap in. I recently tested the headlight switch, which doesn’t really work on the 4th gens- the headlight settings are backwards, no cargo lights, etc. The transfer case switch doesn’t work at all. The main thing I’ll be testing next is the newer hvac module, since the entire hvac system has to be swapped over along with the dash. Basically, we need a 2019+ BCM swapped in to make a dash swap work, but it hasn’t been working out for us so far.

Really? I figured the HVAC system was at least similar or the same under the dash. Are you talking about the 2500/3500 dash or the 1500 dash? I would expect things to be different with the 1500 dashes. Getting the BCM is easy. (getting it to work may be a little more complicated)



[Jimmy07]

Really? I figured the HVAC system was at least similar or the same under the dash. Are you talking about the 2500/3500 dash or the 1500 dash? I would expect things to be different with the 1500 dashes. Getting the BCM is easy. (getting it to work may be a little more complicated)

It has to be a dash from an HD, but everything behind the dash is very different, including the metal sub frame. The hvac system and ductwork is the same between the 5th gen 1500 and 2019+ HDs, and the old plenum, ductwork, etc from the 4th gen won’t fit or line up with anything behind the new dash. New cluster doesn’t work in the 4th gen either. We’ve got BCMs coming out of our ears between the three of us, along with rf hubs, but it’s not as easy as just swapping them out like we can between the 4th gens.



[Roman217]

It has to be a dash from an HD, but everything behind the dash is very different, including the metal sub frame. The hvac system and ductwork is the same between the 5th gen 1500 and 2019+ HDs, and the old plenum, ductwork, etc from the 4th gen won’t fit or line up with anything behind the new dash. New cluster doesn’t work in the 4th gen either. We’ve got BCMs coming out of our ears between the three of us, along with rf hubs, but it’s not as easy as just swapping them out like we can between the 4th gens.

I think I have somewhere around six (probably more) different BCMs sitting in my office right now.



[Roman217]

Nope. I've been super busy with work and haven't had much time for taking my truck apart. Ram/FCA/Whatever hasn't released the brand new trucks I have to be dismantled yet either. I'm planning on getting the dash, the headlight switch and rotary shifter from a 2500. I might just go ahead and get the full interior (-airbags and IP) because new seats are nice.

Let me know if you have a tan/brown 2500/3500 somewhere in there.



[skuppy069]

I think I have somewhere around six (probably more) different BCMs sitting in my office right now.

I thought I had enough of them .
I am up to four now .



[PJs97Talon]

Sorry guys- I was on six flights this week and have at least 4 scheduled this coming week.

It has to be a dash from an HD, but everything behind the dash is very different, including the metal sub frame. The hvac system and ductwork is the same between the 5th gen 1500 and 2019+ HDs, and the old plenum, ductwork, etc from the 4th gen won’t fit or line up with anything behind the new dash. New cluster doesn’t work in the 4th gen either. We’ve got BCMs coming out of our ears between the three of us, along with rf hubs, but it’s not as easy as just swapping them out like we can between the 4th gens.

Crap. I was hoping that the new "dash" was just the outer shell over the older style HVAC and other stuff in the dash since the cab is still the same. So the new cluster doesn't work at all? I wonder if the older cluster could be swapped into the new style housing?

Let me know if you have a tan/brown 2500/3500 somewhere in there.

Yeah. I'm pretty sure at least one of them we got in has the brown interior. I just have no idea when they'll get released. My facility in Bellville, MI gets tons of them in, but I don't feel like going up there and driving back with a truck full of parts.
