How To Add Heated/Ventelated seats and Heated Wheel to Express/Tradesman

[Ruiner]

Sadly yes, I appreciate it.


If the screen shows the modules greyed out, how can you bypass that to get them activated?



[69mach1]

Rick that is really great news I misunderstood looking at pics of the yellow & gray floor connectors One thing I do know is the CAN BUS wires should be a twisted pair to minimize noise on the CAN BUS lines. I'll be moving this up on the to-do list now
Thanks for the info and encouragement!

You will need to run the same wires I did for the most part. There are only a total of 9 wires that need to be connected besides hooking up the correct ignition on run power to the two pink/yellow wires in the drivers side yellow seat plug. You will need 5 wires that run from the passenger seat yellow plug to the drivers seat gray plug, two heated wheel wires from the gray drivers seat plug to the correct plug under the dash and two more wires from the drivers side gray plug to the IHS CAN + and IHS CAN-. That's pretty much it.



[WilliamS]

On top of all this I see steering wheel thrown about. If again I have a bighorn, what wiring will be needed for the heated wheel. Im in Florida so I may never use it, but I just cant have a button without purpose.



[Ricks Ram]

Yes you should have the wiring for the heated wheel. You will need to buy a Heated Wheel and a different clockspring. If you don't buy a complete wheel off of a salvaged vehicle you can also purchase a new heated wheel only and install it but you will need to buy the heated wheel harness as well to connect it to the heated wheel clockspring.



[cptwing]

On top of all this I see steering wheel thrown about. If again I have a bighorn, what wiring will be needed for the heated wheel. Im in Florida so I may never use it, but I just cant have a button without purpose.

I thought all bighorns came with a heated wheel, never personally seen one without heated only front seats, power drivers seat and the heated wheel.


Sent from my iPhone using Tapatalk



[WilliamS]

I thought all bighorns came with a heated wheel, never personally seen one without heated only front seats, power drivers seat and the heated wheel.


Sent from my iPhone using Tapatalk

Not a lot of cold weather packages down here in Florida. I bet its nearly standard up there.



[00R/T]

I thought all bighorns came with a heated wheel, never personally seen one without heated only front seats, power drivers seat and the heated wheel.


Sent from my iPhone using Tapatalk

My experience has been just the opposite. When I was looking for trucks earlier this year I'd say only about 20% of the Big Horns I found had that option.



[WilliamS]

You had me till clock spring, Im not that savy. Oh well a dead button.

My seats are shipped so a few more days and I will bring my gopro into the truck and plug it all in see if it works! Great deal out of Iowa.



[DeereGuy]

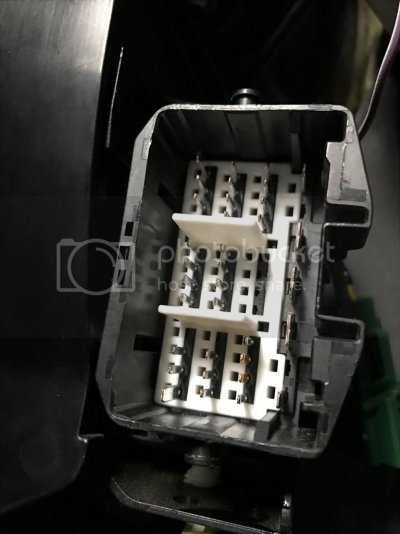

Does anyone know how to remove the I311 connector from its mounting bracket? I need to get behind it to pin two wires into it for the heated steering wheel and can't figure out how it releases.



[WilliamS]

Got my heated/cooled, front end rear pdc, traction, heated wheel, and tow haul buttons todays. Wanted to confirm there are only 3 pins populated in the connector. I imagine is +voltage, ground, data?

Also you sure my bighorn needs to upgrade the clockspring for the wheel and it's not already in there?



[00R/T]

Got my heated/cooled, front end rear pdc, traction, heated wheel, and tow haul buttons todays. Wanted to confirm there are only 3 pins populated in the connector. I imagine is +voltage, ground, data?



Also you sure my bighorn needs to upgrade the clockspring for the wheel and it's not already in there?

Yes. All the switch blocks use the same wiring except for the HD one with the AUX switches.

Your truck definitely won't have the heated wheel clockspring. There's no reason why they would install a more expensive part when it accomplishes nothing.



[WilliamS]

Yes. All the switch blocks use the same wiring except for the HD one with the AUX switches.

Your truck definitely won't have the heated wheel clockspring. There's no reason why they would install a more expensive part when it accomplishes nothing.

Thanks and darn.



[WilliamS]

Step 1 for me.



[MaizeNBlue]

Also got step 1 completed



[WilliamS]

Only doing heated or doing the seats and wheel?



[MaizeNBlue]

Wheel and seats



[DeereGuy]

Can you guys post your part numbers? I'm going to start a centralized list of all part numbers and options/features.


Sent from my iPhone using Tapatalk



[WilliamS]

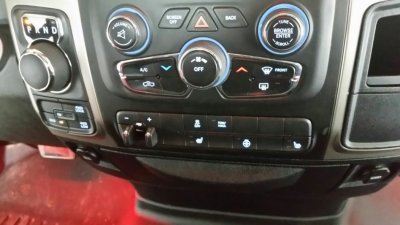

Sure my control panel with Front/Rear Parking, Tow/Haul, Traction Control, Heated/Cooled, and Heated Steering wheel is

56054517AA

http://www.factorychryslerparts.com/products/SWITCH-Instrument-Panel/10214632/56054517AA.html

I found it on Ebay for $50.00 shipped.



[00R/T]

Can you guys post your part numbers? I'm going to start a centralized list of all part numbers and options/features.


Sent from my iPhone using Tapatalk

68137063AB - Basic Tow/Haul & ESP plus heated seats and wheel



[MaizeNBlue]

Will get it to ya the next time I take the bezel off
