DIY: 2013-2017 RA3/RA4 8.4" Radio Upgrade/HVAC Conversion

[Mpgrimm2]

None & No Blue Led Light or Indicator.

Too many things going on at once to point you in any one direction besides saying to really scrutinize your harness.

Do you have steering wheel Audio controls? If so run the radio without the original controls/Bezel to verify it.

Get another HVAC module (what's your PN on it) and see if it's that. If not look at the harness again. Could also be a bad bezel.

M² Mods.



[Kannox]

I have re-ordered bezel. Hope that is it. I am not confident about the harness. I used work with microboard long time ago but it was long time ago and I have bad eyes now so I had to use magnified work cradle. So it could be the cable. If new brand new bezel don't work, I will purchase the harness from you since AC module was new in the sealed Mopar Box.



[Mpgrimm2]

You can also send me your bezel to test if you want to pay shipping both ways.

M² Mods.



[Sebass1985]

Got my wiring harness for my 7 speed fan, 8.4 upgrade. Professional work, looks amazing. Installed and no issues this far.

Would highly recommend M2mods

Sent from my SM-G960W using Tapatalk



[R.L.K.]

Got my wiring harness for my 7 speed fan, 8.4 upgrade. Professional work, looks amazing. Installed and no issues this far.

Would highly recommend M2mods

Sent from my SM-G960W using Tapatalk

If I had a dollar Everytime I've heard and said this same thing [emoji16][emoji106][emoji16]

Sent from my SM-G930V using Tapatalk



[Kannox]

Got my wiring harness for my 7 speed fan, 8.4 upgrade. Professional work, looks amazing. Installed and no issues this far.

Would highly recommend M2mods

Sent from my SM-G960W using Tapatalk

Hi. I recieved brand new control bezel. Everything from touch screen works but still no power to the bezel itself. So as you said before it is likely the DIY harness I made. I need to buy your harness. Would you let me know how to order?
Thanks.

Sent from my SM-N950U using Tapatalk



[Kannox]

Hello Mpgrimm2.
I have found the problem accidentally and luckily have fixed the issue. I could not able to do this without your help.
I truly appreciate your help and respect your effort to help others like me. You are awesome!



[chri5k]

Tip - If you get the Red banner message about the "cellular radio needs servicing, see your dealer" even with the plug from M2Mods or an antenna connected, check the cellular antenna jack on the back of the radio. I recently received a VP4 radio from an auto recycler and the center pin was bent against the outer barrel. The plug from M2Mods went on and clicked but I kept getting that error message. I was able to straighten the pin with a very small screw driver and the radio works fine now.



[Mpgrimm2]

Going to share this here for now ....

* 14-18 ram 1500's have a variable displacement compressor (typ. associated with the 7 speed fan)

>> 14-17's w/RAx = 68268186Ax * HVAC module (or superseded PN below)
>> 18's w/UAx = 68366552AA HVAC module

* Here are all the compatible/superseded 14-17 ram 1500 RAx HVAC modules from post 2....
68268186AA, AB, AC, etc
68183973AA, AB, AC, etc
68236772AA, AB, AC, etc
68239172AA, AB, AC, etc

------------------------------------------

* 13-18 ram 2500/3500's (& 13 Ram1500) have a fixed displacement compressor (typ. associated with the 4 speed fan)

>> 14-17's w/RAx = 68105017Ax HVAC module
>> 18's w/UAx = 68366553AA HVAC module

& the current thinking is to match the HVAC module to the 8.4 radio year.




M² Mods.



[Mpgrimm2]

Added to post 10...

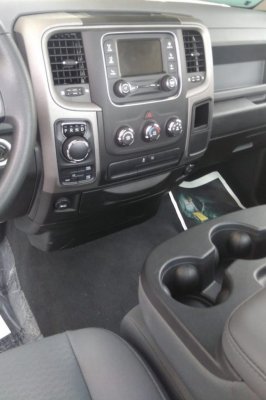

Heres an update on my install. 2 colored fakra connectors missing but fixed it with some fakra to smb adapter. So far its working good.

Here's links to some of the adapters if needed:

Curry Fakra K (SXM) - eBay

Curry Fakra K w/Rt Angle (SXM) - Amazon

White Fakra B (FM) - eBay

Bordeaux 'Prpl' Fakra D w/Rt Angle (Cellular) - Amazon

View attachment 176065

View attachment 176067
